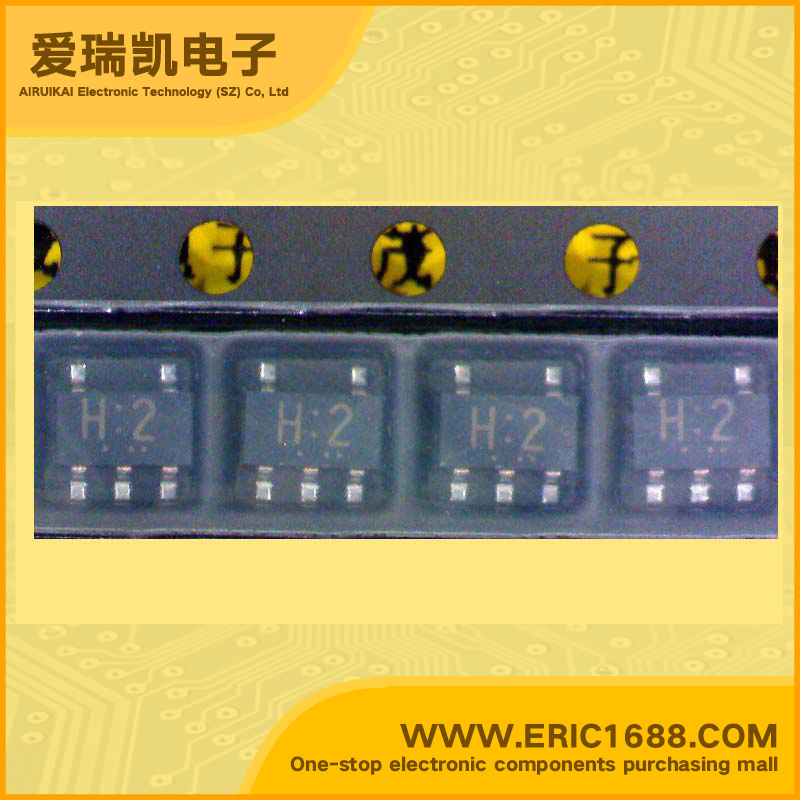

Integrated Circuit(IC) AND gate TC7SH08F SOT-153/SMV marking H2

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2v~5.5v
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V
高逻辑电平
Logic Level - High
1.5V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.9ns @4.5V~5.5V ,50pF
Description & Applications2-Input AND Gate ;• High speed operation : tpd = 4.3ns (typ.) at VCC = 5V, 15pF • Low power dissipation : ICC = 2 μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • 5.5-V tolerant inputs • Wide operating voltage range : VCC = 2 to 5.5 V
描述与应用2输入与门;•高速运行:TPD =4.3ns(典型值),VCC = 5V时,15PF •低功耗:ICC= 2μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL=28%VCC(分钟) •5.5-V宽容输入 •宽工作电压范围:VCC=2至5.5 V
