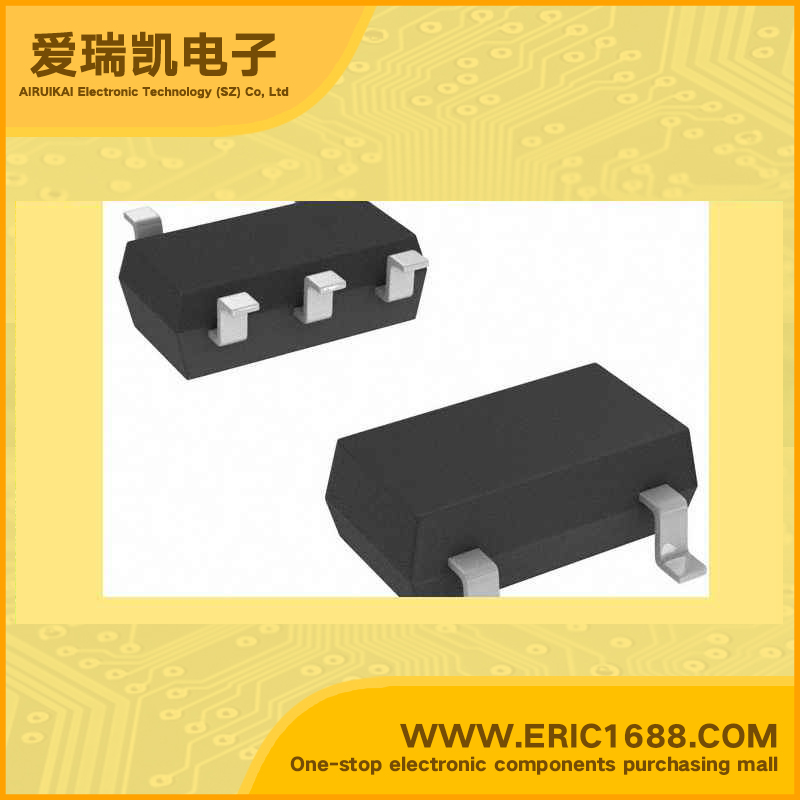

Integrated Circuit（IC） XOR gate TC7SH86F SOT-153/SMV marking H8
| 逻辑类型 Logic Type | 异或门 XOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.5v |
| 高逻辑电平 Logic Level - High | 1.5v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 8.8ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | 2-Input EXCLUSIVE OR Gate ；• High speed operation : tpd = 4.8 ns (typ.) at VCC = 5V, 15pF • Low power dissipation : ICC = 2μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • 5.5-V tolerant inputs. • Balanced Propagation Delay : tpLH ≈ tpHL • Wide operating voltage range: VCC = 2 to 5.5 V |
| 描述与应用 | 2输入异或门;•高速运行：TPD =4.8纳秒（典型值），VCC = 5V时，15PF •低功耗：ICC=2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •5.5-V宽容投入。 •平衡传输延迟：TPLH≈TPHL •宽工作电压范围：VCC=2至5.5 V |
