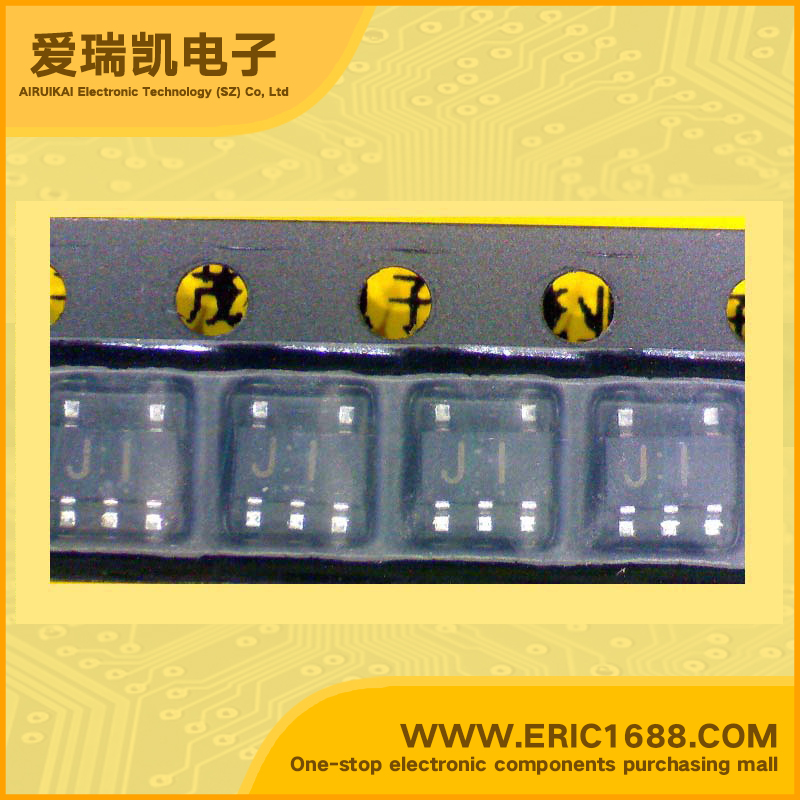

Integrated Circuit(IC) NAND gate TC7SZ00F SOT-153/SMV marking J1

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.8V~5.5V
静态电流Iq
Current - Quiescent (Max)
2μA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.25v~0.3v
高逻辑电平
Logic Level - High
0.7v~0.75v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.3ns @ 4.5V~5.5V,15pF
Description & ApplicationsTOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic. * 2-Input NAND Gate . * High output current : ±24 mA (min) at VCC = 3 V. * Super high speed operation : tpd = 2.4 ns (typ.) at VCC = 5 V, 50 pF. * Operating voltage range : VCC = 1.8 to 5.5 V . * 5.5-V tolerant inputs . * 5.5-V power down protection output . * Matches the performance of TC74LCX series when operated at 3.3-V VCC.
描述与应用东芝CMOS数字集成电路硅单片。 *2输入与非门。 *高输出电流:±24 mA(分钟)在VCC= 3 V。 *超高速运转::TPD =2.4纳秒(典型值)VCC= 5 V,50 pF的。 *工作电压范围:VCC=1.8至5.5 V。 *5.5-V宽容输入。 * 5.5-V断电保护输出。 *匹配时表现TC74LCX系列工作在3.3-V VCC。
