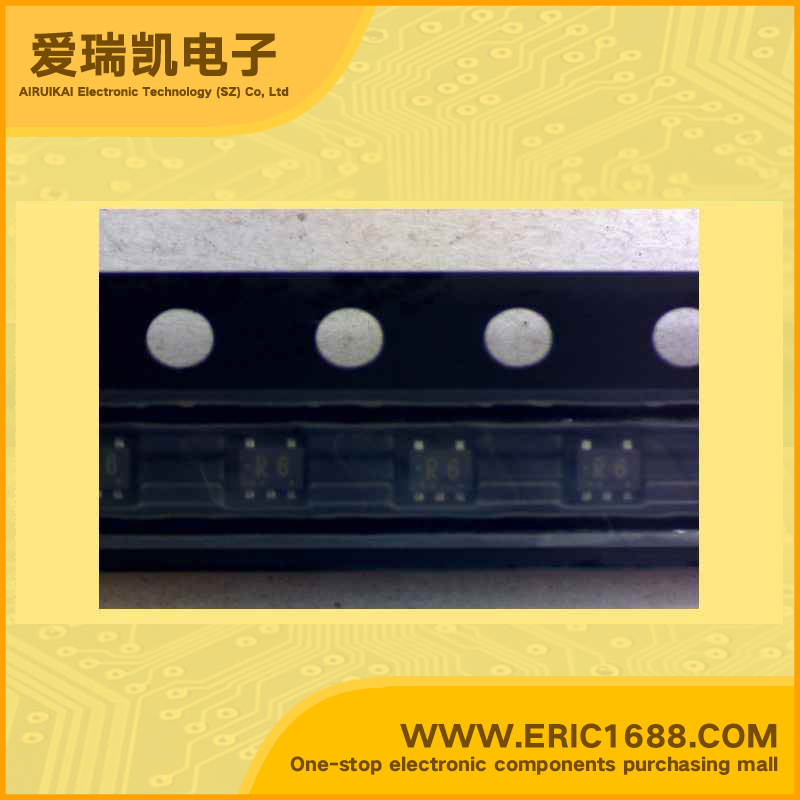

Integrated Circuit（IC） inverter TC7SZU04AFE SOT-553/ESV marking R6
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.5v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2µA |
| 输出高，低电平电流 Current - Output High, Low | -0.5mA,0.5mA |
| 低逻辑电平 Logic Level - Low | 0.15v~0.2v |
| 高逻辑电平 Logic Level - High | 0.8v~0.85v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5nS @ 4.5v~5V，50pF |
| Description & Applications | Inverter ；High output drive: ±24 mA (min.) @VCC = 3 V • Super high speed operation: tPD 2.4 ns (typ.) @VCC = 5 V, 50 pF • Operation voltage range: VCC = 1.8~5.5 V • Supply voltage data retention: VCC = 1.5~5.5 V • Latch-up performance: ±500 mA or higher • ESD performance: Human body model > ±2000 V Machine model > ±200 V • Power down protection is provided on all inputs. • Matches the performance of TC74LCX series when operated at 3.3 V VCC |
| 描述与应用 | 逆变器;高输出电流：±24 mA（分钟）在VCC=3 V •超高速运转：TPD =2.9 ns（典型值） 在VCC= 5 V，CL=50 pF的 •工作电压范围：VCC = 1.8至5.5 V •5.5-V宽容投入。 •5.5-V断电保护输出。 •操作时的性能相匹配的TC74LCX系列 3.3 V虚拟通道连接。 |
