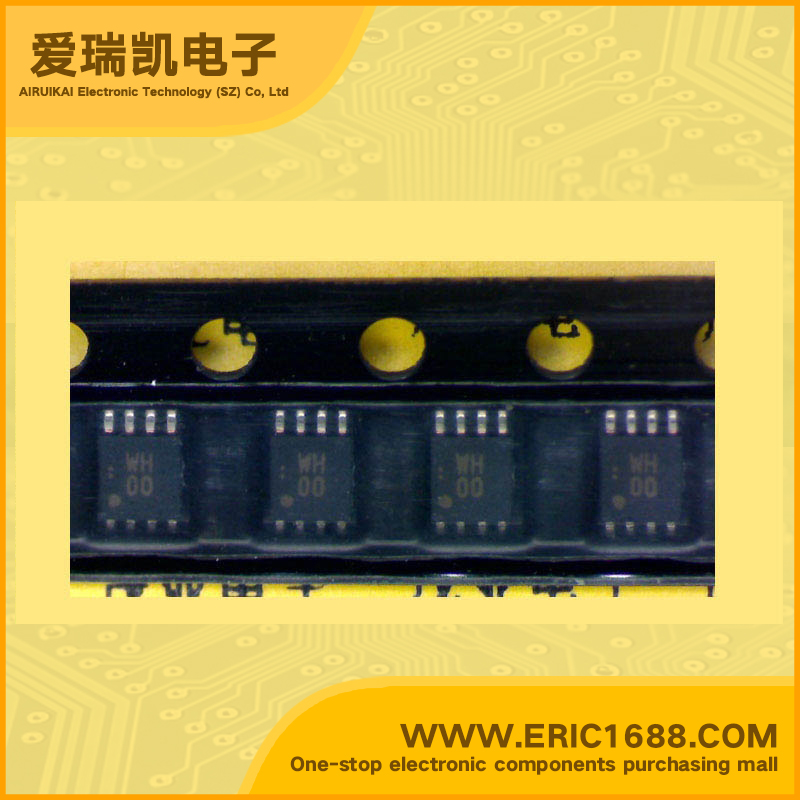

Integrated Circuit(IC) NAND gate TC7WH00FK US8 marking WH00

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
2µA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5v
高逻辑电平
Logic Level - High
1.5v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.5ns @ 4.5V ~ 5.5V,50pF
Description & ApplicationsDual 2-Input NAND Gate ;• High speed operation : tpd = 3.7ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • Operating voltage range : VCC = 2 to 5.5 V • Balanced propagation delays : tpLH ≒ tpHL • 5.5-V Tolerant inputs • Identical pin assignment and function with TC7W00
描述与应用双2输入与非门;•高速运行:TPD =3.7ns(典型值) 在VCC = 5 V,CL=15PF •低功耗:ICC=2μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL=28%VCC(分钟) •工作电压范围:VCC=2至5.5 V •平衡传输时延:TPLH≒TPHL •5.5-V容错输入 •相同的引脚分配和功能TC7W00
