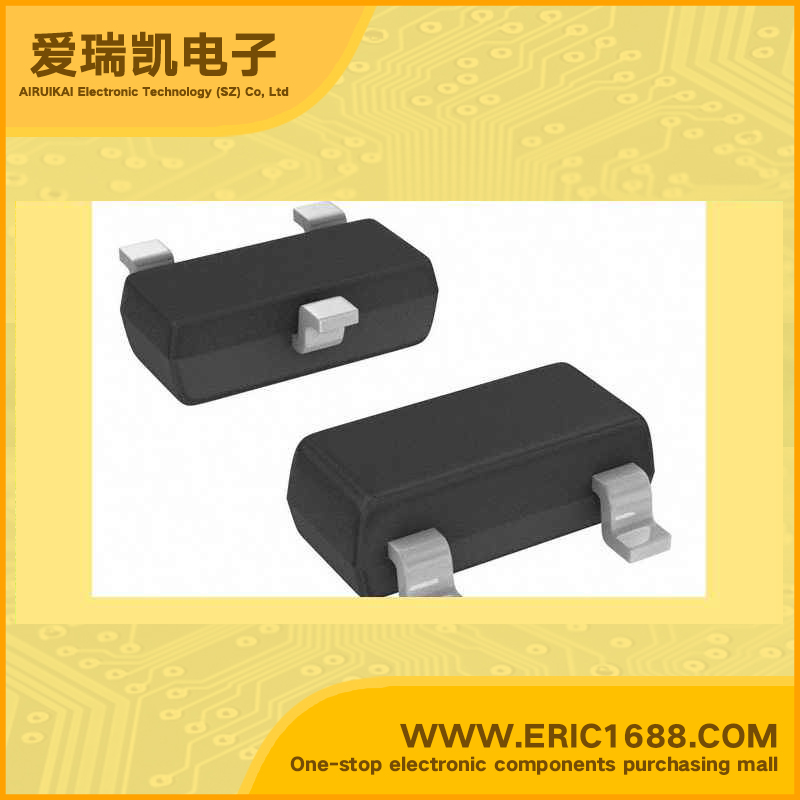

TCM809SENB713 Voltage Supervisor 2.93V SOT-23 marking J4 MCU reset monitor
| 受检测电压数 Number of Voltages Monitored | 1 |
| 检测电压/复位阈值电压VDET Voltage - Threshold | 2.93V |
| 工作电压VIN Voltage - Supply | 6V |
| 高/低有效复位 Reset | 低 Active Low |
| 输出类型 Output Type | push pull |
| 看门狗 Watchdog | 无 No |
| 功耗Pd Power Dissipation | |
| Description & Applications | •3-Pin Microcontroller Reset Monitors •Precision VDD Monitor for 2.5V, 3.0V, 3.3V, 5.0V Nominal System Voltage Supplies • 140 msec Minimum RESET Time-Out Period • RESET Output to VDD = 1.0V (TCM809) • Low Supply Current, 9 µA (typ.) • VDD Transient Immunity • No External Components • Push-Pull RESET Output • Temperature Ranges: - Industrial: SC-70 (E): -40°C to +85°C - Extended: SOT-23, SC-70 (V): -40°C to +125°C |
| 描述与应用 | •3引脚单片机复位监视器 •精确的VDD监视器为2.5V，3.0V，3.3V，5.0V 标称系统电压电源 •140 ms最小复位超时周期 •复位输出VDD= 1.0V（TCM809） •低电源电流（典型值），9 UA •VDD瞬态抗扰度 •无需外部元件 •推挽式复位输出 •温度范围： - 工业级：SC-70（E）：-40°C至+85°C - 扩展级：SOT-23，SC-70（V）：-40°C至+125°C |
