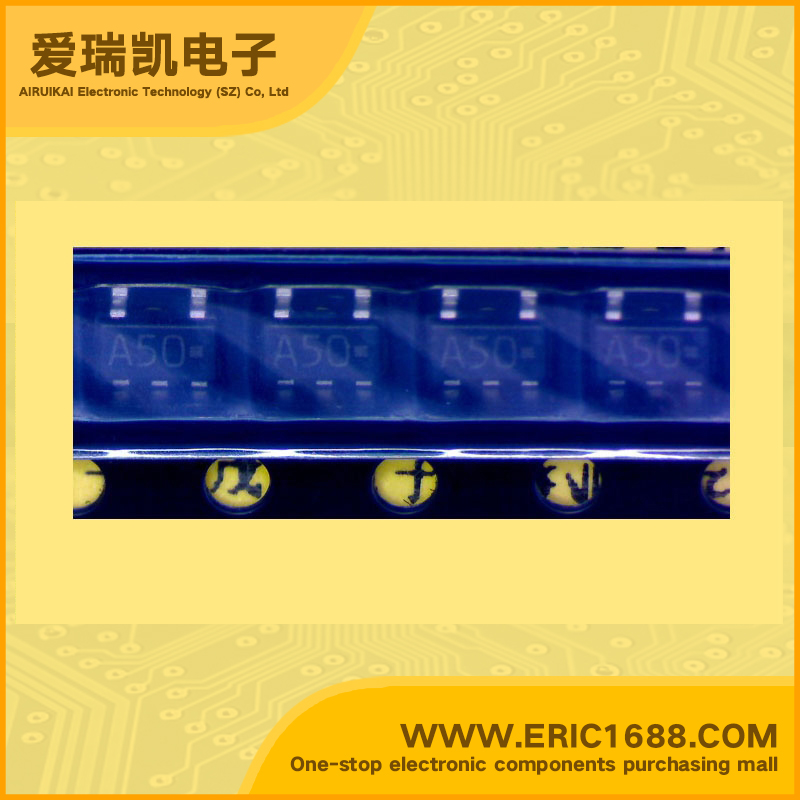

TK70550S-G LDO Voltage Regulator 5V 160mV/0.16V SOT-153/SOT23-5 marking A50 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.4~16V |
| 输出电压VOUT Voltage - Output | 5V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 160mV/0.16V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | •Output current: 100mA, Peak 200mA • Active high on/off control •Excellent Ripple rejection ratio: 80dB (f=1kHz)70dB (f=10kHz) •Output capacitance: Cout ≥ 0.47µF(Ceramic) •Output voltage accuracy: ±1.5% or ±50mV • Short circuit protection (Over current protection) •Internal thermal shutdown (Over heat protection) •Reverse bias protection •Any Electronic Equipment •Battery Powered Systems •Mobile Communication |
| 描述与应用 | •输出电流：100mA，峰值200毫安 •主动高开/关控制 •优秀的纹波抑制比：80dB（全额F =1kHz时）70分贝（F =10KHZ） •输出电容COUT≥0.47μF（陶瓷） •输出电压精度：±1.5％或±50mV的 •短路保护（过电流保护） •内部热关断（过温保护） •反向偏压保护 •任何电子设备 •电池供电系统 •移动通信 |
