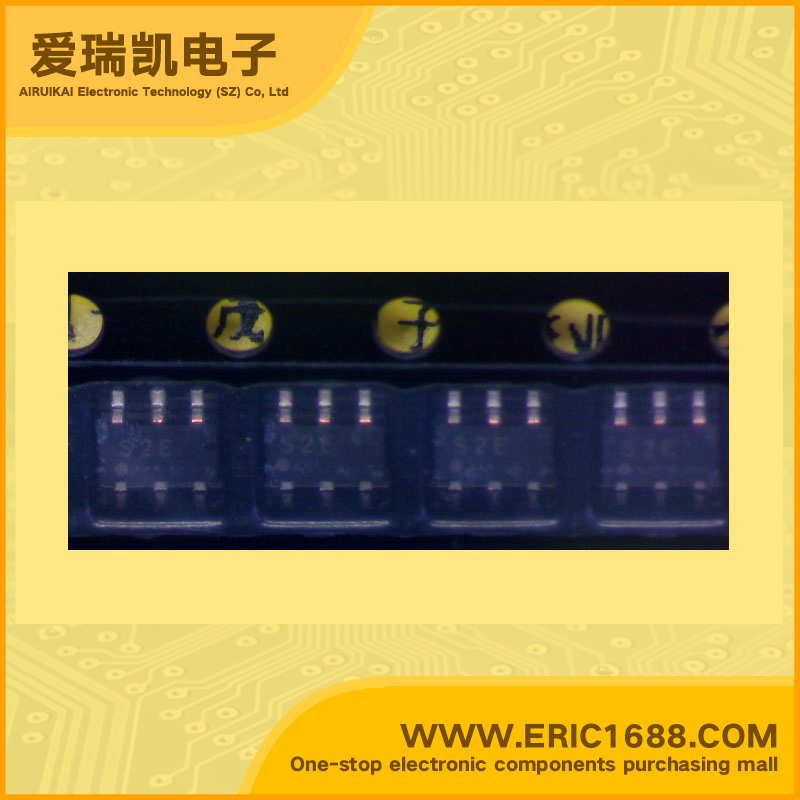

TPC6005 MOSFET N-Channel 30V 6A SOT-163/SOT23-6/VS-6 marking S2E fast switch/low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 12V |
| 最大漏极电流Id Drain Current | 6A |
| 源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance | 0.028Ω/Ohm @3A,10V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 0.5-1.2V |
| 耗散功率Pd Power Dissipation | 2.2W |
| Description & Applications | Notebook PC Applications Portable Equipment Applications Low drain-source ON resistance: RS (ON) = 21 mΩ (typ.) High forward transfer admittance: |Yfs| = 10 S (typ.) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) Enhancement-model: Vth = 0.5 to 1.2 V (VDS = 10 V, ID = 200 µA) |
| 描述与应用 | 笔记本电脑应用 便携式设备的应用 低漏源导通电阻RDS（ON）= 21mΩ（典型值） 高正向转移导纳：| YFS|=10 S（典型值） 低漏电流：IDSS= 10μA（最大值）（VDS= 30 V） 增强模式：VTH =0.5〜1.2 V（VDS=10 V，ID=200μA） |
