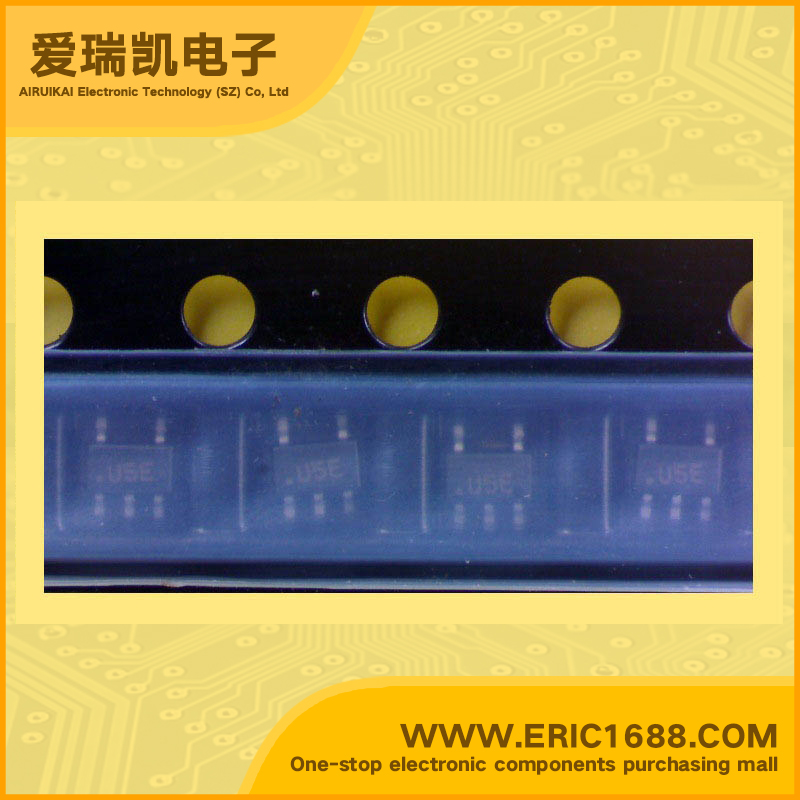

UMC5NT1 NPN+PNP Complex Bipolar Digital Transistor -50V/50V -100mA/100mA 35/140 150mW/0.15W SOT-353/SC-88A/SC70-5 marking U5E switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V/50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V/50V
集电极连续输出电流IC Collector Current(IC)-100mA/100mA
Q1基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio0.47
Q2基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)35/140
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation150mW/0.15W
Description & ApplicationsFeatures • Dual Common Base-Collector Bias Resistor Transistors • NPN and PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network • Pb−Free Packages are Available • Simplifies Circuit Design • Reduces Board Space • Reduces Component Count • Available in 8 mm, 7 inch/3000 Unit Tape and Reel
描述与应用特点 •双共基极 - 集电极偏置电阻晶体管 •NPN和PNP硅表面贴装晶体管与单片偏置电阻网络 •无铅包可用 •简化电路设计 •缩小板级空间 •减少元件数量 •可在8毫米,7 inch/3000单位编带和卷轴
