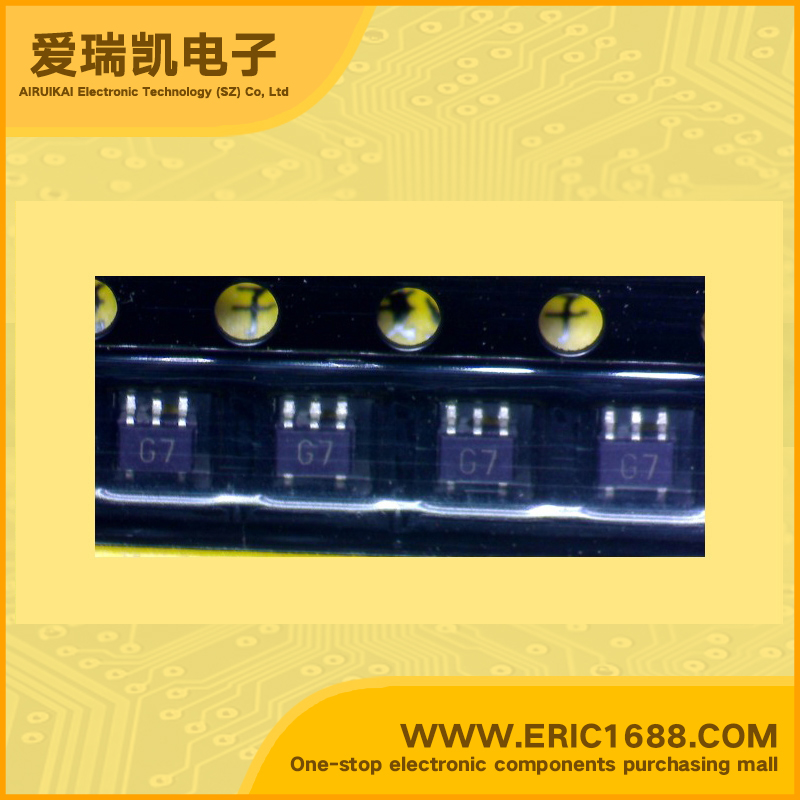

UMG7 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 100~600 150mW/0.15W SOT-353/UMT5/SC-88A/SC70-5 marking G7 switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | |
| Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | 100~600 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | |
| 描述与应用 |
