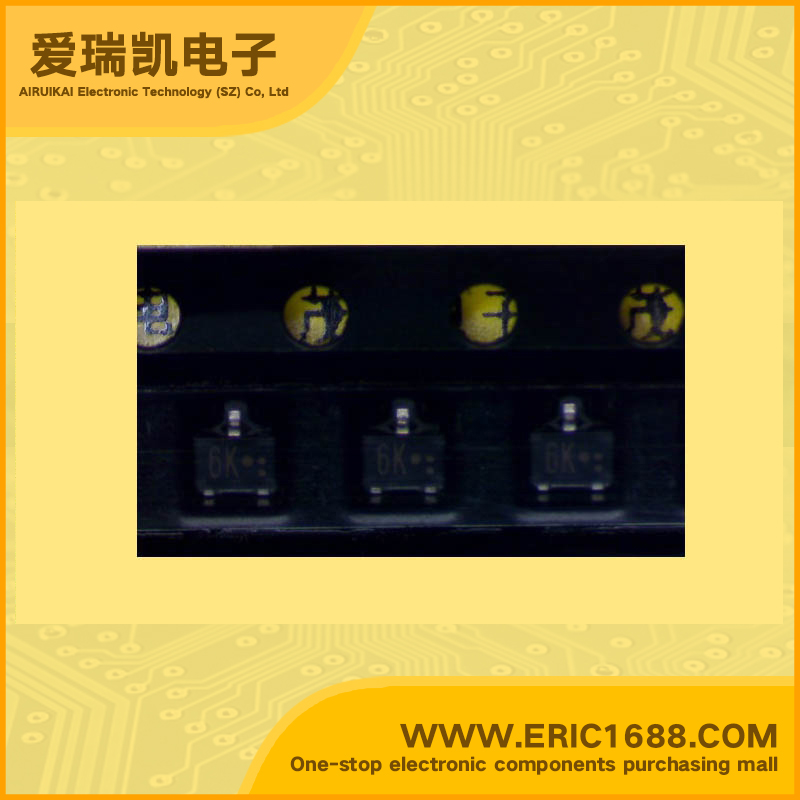

UN5119 PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 30 0.15W/150mW SOT-323/SC-70 marking 6K switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 1KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.1 |
| 直流电流增益hFE DC Current Gain(hFE) | 30 |
| 截止频率fT Transtion Frequency(fT) | 80MHz |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Features •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •S-Mini type package, allowing downsizing of the equipment and automatic insertion through tape packing and magazine packing |
| 描述与应用 | 特点 •硅PNP外延刨刀晶体管的 •成本可降低通过减员设备和减少部件的数量。 •S-迷你型包装，使瘦身的设备和通过自动插入磁带包装盒包装 |
