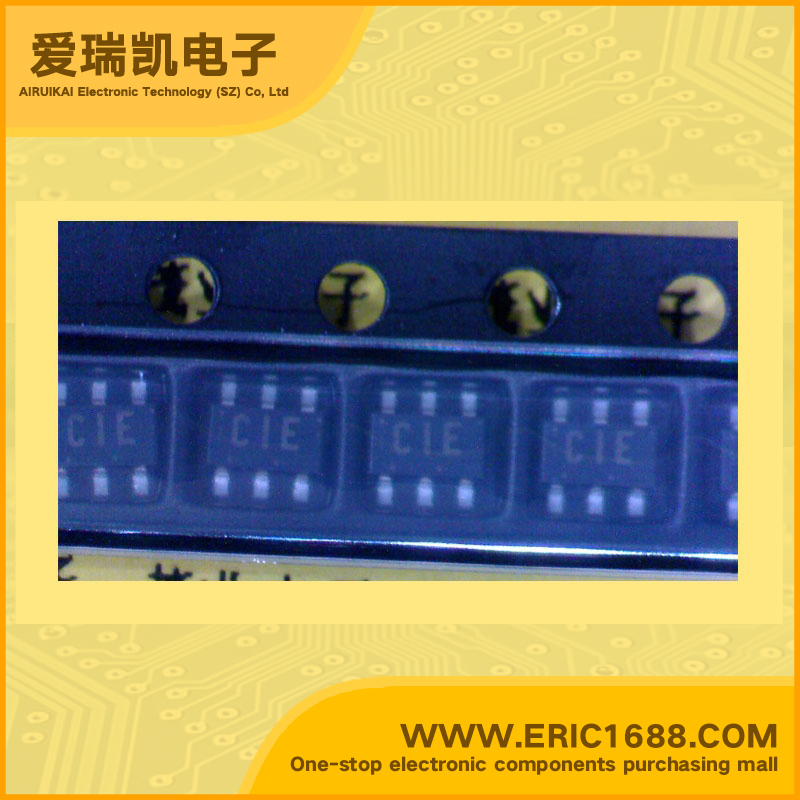

RF amplifier UPC2709TB SOT-363 marking C1E
| 频率 Frequency | 2GHz~2.3GHz |
| P1dB | |
| 增益 Gain | 21dB~26.5dB |
| 噪声系数 Noise Figure | 5dB~6.5dB |
| RF 类型 RF Type | 手机，DBS，PCS Cellular, DBS, PCS |
| 电源电压 Voltage - Supply | 4.5V~5.5V |
| 电源电流 Current - Supply | 19mA~32mA |
| 测试频率 Test Frequency | 1GHz |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 5 V, SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER • High-density surface mounting : 6-pin super minimold package • Supply voltage : VCC = 4.5 to 5.5 V • Wideband response : fu = 2.3 GHz TYP. @3 dB bandwidth • Medium output power : PO (sat) = +11.5 dBm@f = 1 GHz with external inductor • Power gain : GP = 23 dB TYP. @f = 1 GHz • Port impedance : input/output 50 Ω APPLICATIONS • 1st IF amplifiers in DBS converters • RF stage buffer in DBS tuners, etc. |
| 描述与应用 | 特点 •双极模拟集成电路 •5 V，超级迷你模具硅MMIC中等输出功率放大器 •高密度表面安装：6-pin超级迷你模具包 •电源电压：VCC=4.5到5.5 V •宽带响应：FU =2.3 GHz的TYP。 @3 dB带宽 •中等输出功率：PO（SAT）=+11.5 dBm的@ F =1 GHz的外部电感器 •功率增益：GP=23 dB（典型值）。 @频率=1 GHz的 •输入/输出端口阻抗：50欧姆 应用 •第一中频放大器DBS转换 •RF阶段缓冲区DBS调谐器等。 |
