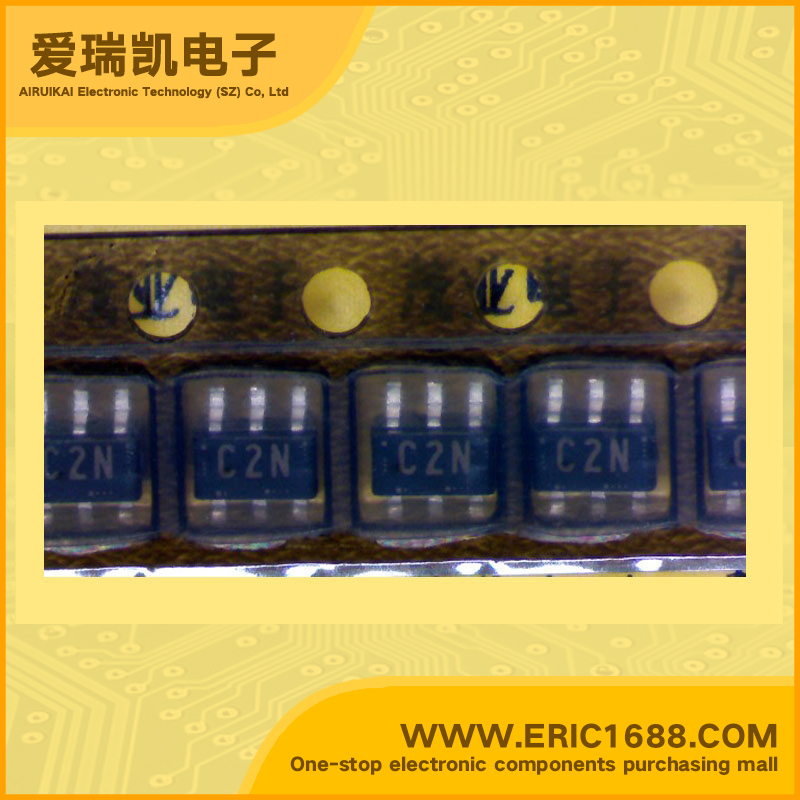

RF amplifier UPC8120T SOT-163 marking C2N

Hot selling goods

Product description
频率
Frequency
0.1GHz~1.92GHz
P1dB3dBm
增益
Gain
10.5dB~16.5dB
噪声系数
Noise Figure
7.5dB~10.5dB
RF 类型
RF Type
电源电压
Voltage - Supply
2.7V~3.3V
电源电流
Current - Supply
11mA
测试频率
Test Frequency
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE • Recommended operating frequency : f = 100 MHz to 1.92 GHz • Supply voltage : VCC = 2.7 to 3.3 V • Low current consumption : ICC = 11 mA TYP. @ VCC = 3.0 V • Gain control voltage : VAGC = 0.6 to 2.4 V (recommended) • Two types of gain control :µPC8120T = VAGC up vs. Gain up (Reverse control) • AGC control can be constructed by external control circuit. • High-density surface mounting APPLICATIONS • 1.9 GHz cordless telephone (PHS base-station and so on) • 800 MHz to 900 MHz or 1.5 GHz Digital cellular telephone (PDC800M, PDC1.5G and so on)
描述与应用特点 •双极模拟集成电路 •可变增益放大器硅MMIC AGC数字蜂窝电话发射器 •推荐工作频率:f =100 MHz到1.92 GHz的 •电源电压:VCC=2.7到3.3 V •低功耗:ICC= 11 mA(典型值)。 @ VCC= 3.0 V •增益控制电压:VAGC=0.6〜2.4 V(推荐) •两种类型的增益控制μPC8120T= VAGC与增益(反向控制) •AGC控制可以通过外部控制电路构成。 •高密度表面安装 应用 •1.9 GHz的无绳电话(PHS基站等) •800 MHz至900 MHz或1.5 GHz数字蜂窝电话(PDC800M PDC1.5G等)
