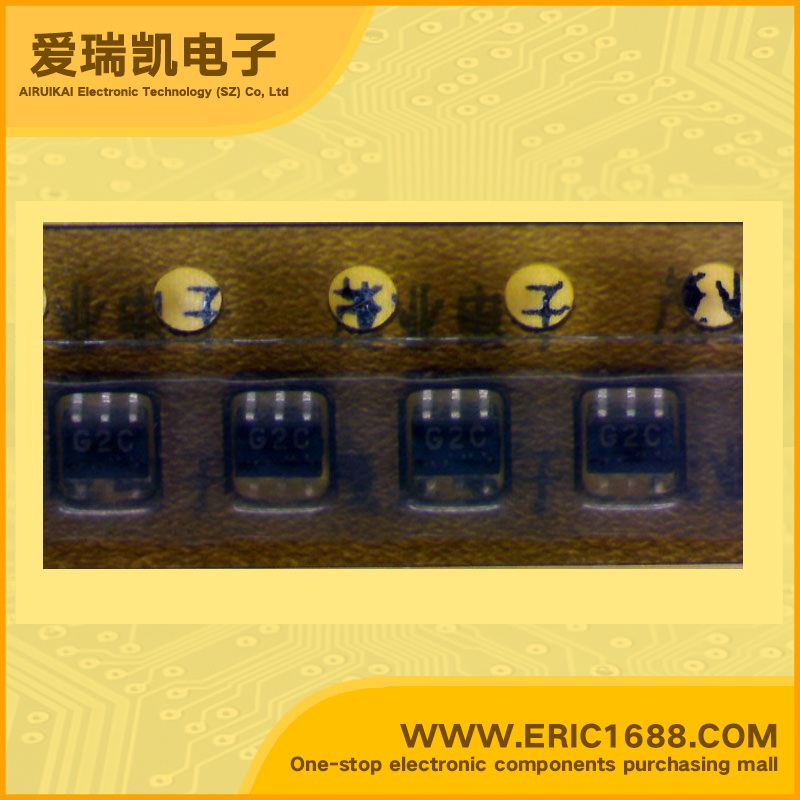

RF amplifier UPG2115TB SOT-363 marking G2C
| 频率 Frequency | 893MHz~960MHz |
| P1dB | |
| 增益 Gain | 14dB~20dB |
| 噪声系数 Noise Figure | |
| RF 类型 RF Type | PDC |
| 电源电压 Voltage - Supply | 2.7V~3.3V |
| 电源电流 Current - Supply | 12mA~16mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES • GaAs INTEGRATED CIRCUIT • L-BAND PA DRIVER AMPLIFIER • Low operation voltage: VDD = 3.0 V • f: 893 to 960 MHz @ Pout = +8 dBm • Low distortion: Padj1 = −60 dBc TYP. @ VDD = 3.0 V, Pout = +8 dBm External output matching • Low operation current: IDD = 12 mA TYP. @ VDD = 3.0 V, Pout = +8 dBm External output matching • 6-pin super minimold package APPLICATION • Digital cellular: PDC800MHz etc. |
| 描述与应用 | 特点 •砷化镓集成电路 •L波段PA驱动放大器 •低电压工作：VDD= 3.0 V •F：893至960兆赫@噘嘴=+8 dBm的 •低失真：Padj1=-60 dBc的TYP。 @ VDD=3.0 V，输出功率为+8 dBm的外部输出匹配 •低工作电流：IDD= 12毫安TYP。 @ VDD=3.0 V，输出功率为+8 dBm的外部输出匹配 •6-pin超级迷你模具包 应用 •数字蜂窝：PDC800MHz等。 |
