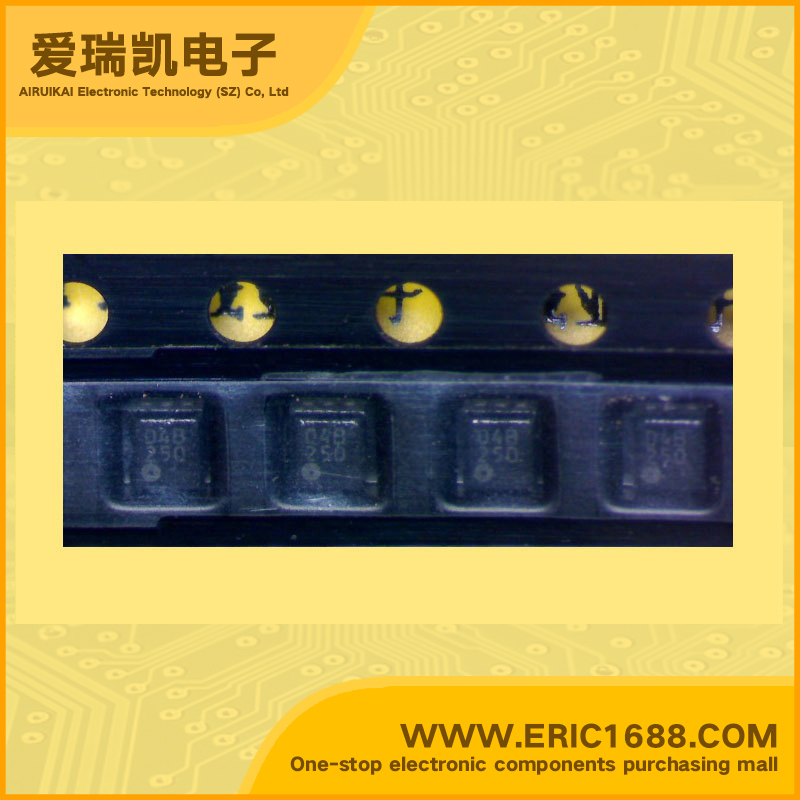

XC6204B252DR LDO Voltage Regulator 2.5V 220mV/0.22V With Enable Pin USP-6B marking 04B25 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
2.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
220mV/0.22V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & Applications•High Speed LDO Regulators Output ON-OFF Control •Maximum Output Current : 150mA (300mA=XC6204 E to H TYP.) •Dropout Voltage : 200mV @ 100mA 60mV @ 30mA •Operating Voltage : 2V ~ 10V •Output Voltage Range : 1.8V ~ 6.0V (XC6204) (0.05V increments) 0.9V ~ 1.75V (XC6205) (0.05V increments) •Highly Accurate : ±2% •Low Power Consumption : 70μA (TYP.) •Standby Current : Less than 0.1μA (TYP.) •High Ripple Rejection : 70dB (10kHz) (XC6204) 60dB (10kHz) (XC6205) •Operational Temperature Range : -40℃ ~ 85℃ •Low ESR Capacitor Compatible • Ceramic capacitor
描述与应用•高速LDO稳压器输出的ON-OFF控制 •最大输出电流  :电流150mA •漏失电压范围为200mV@ 100mA 60mV的@30毫安 •工作电压:2V〜10V •输出电压范围  :1.8V〜6.0V(0.05V间隔)(XC6204)   0.9V〜1.75V(0.05V间隔)(XC6205) •高精度:±2% •低功耗:70μA(典型值) •待机电流小于0.1μA(典型值) •高纹波抑制:70分贝(10KHZ)(XC6204)   60分贝(10KHZ)(XC6205) •工作温度范围  :-40℃〜85℃ •低ESR电容器兼容 •陶瓷电容器
