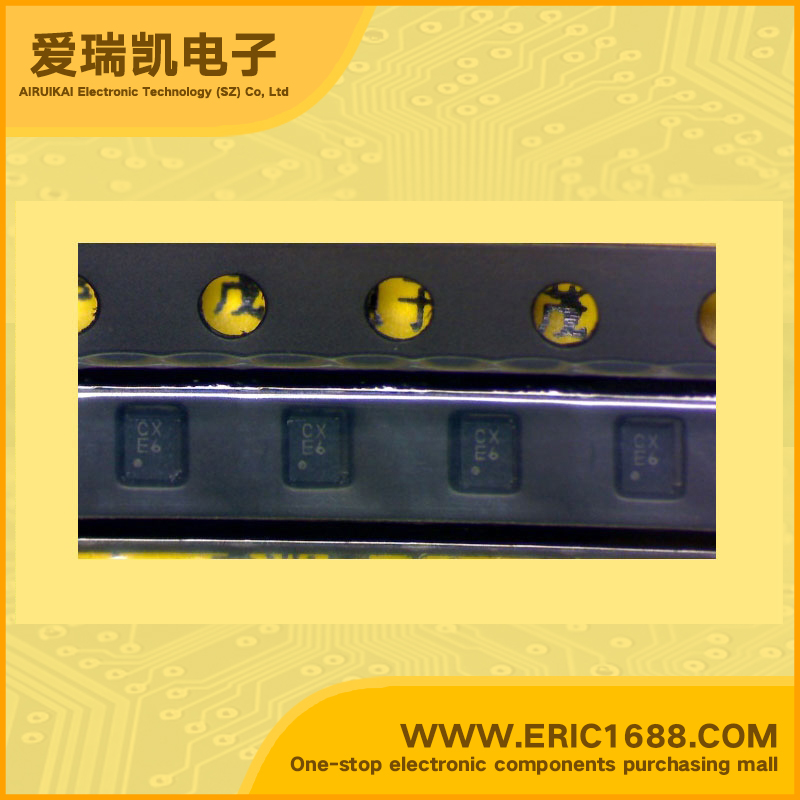

XC6213B152GR LDO Voltage Regulator 1.5V 730mV/0.73V With Enable Pin USP-4 marking CXE Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6.5V |
| 输出电压VOUT Voltage - Output | 1.5V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 730mV/0.73V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | •High Speed LDO Regulators, Low ESR Cap. Compatible, Ultra Small Package •Maximum Output Current : 150mA @ VOUT=3.0V, VIN=4.0V •Dropout Voltage : 400mV •Input Voltage Range : 2.0 ~ 6.0V •Output Voltage Range : 1.2 ~ 5.0V (50mV Increments) •Highly Accurate : ±2% •Low Power Consumption : 35μA (TYP.) •Stand-by Current : Less than 0.1μA •High Ripple Rejection : 60dB @ 10kHz •Operating Temperature Range : - 40℃ ~ 85℃ •Low ESR Capacitor Compatible : Ceramic capacitor |
| 描述与应用 | •高速LDO稳压器，低ESR电容。兼容，超小型封装 •最大输出电流：150mA@ VOUT= 3.0V，VIN=4.0V •漏失电压：400mV的 •输入电压范围：2.0〜6.0V •输出电压范围：1.2〜5.0V（50mV增量） •高精度：±2％ •低功耗：35μA（典型值） •待机电流小于0.1μA •高纹波抑制：60dB的@10KHZ •工作温度范围： - 40℃〜85℃ •低ESR电容器兼容的陶瓷电容器 |
