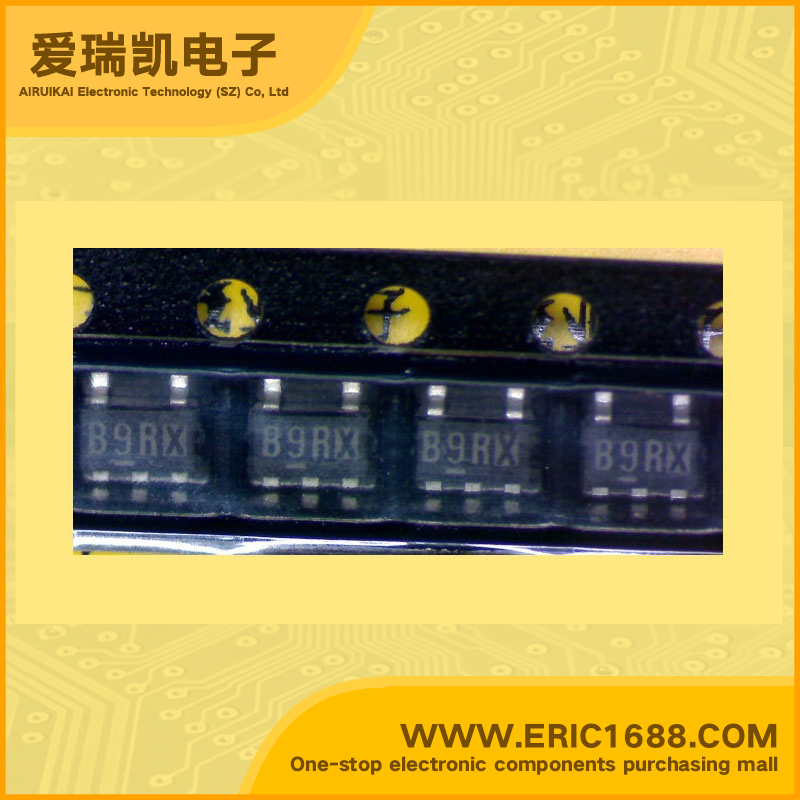

XC66DN1922MR LDO Voltage Regulator 2.2V 260mV/0.26V SOT-153/SOT-25/SOT23-5 marking B9 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~12V |
| 输出电压VOUT Voltage - Output | 2.2V |
| 输出电流Io Current - Output | 60mA |
| 最大压降VDO Voltage - Dropout | 260mV/0.26V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 150mW/0.15W |
| Description & Applications | •Positive Voltage Regulators with Built‐in Voltage Detect Functions •Output Current : 200mA (300mA limit, TYP.) •Dropout Voltage : 95mV @ IOUT=100mA VOUT=3.0V •Operating Voltage Range : 1.5V~6.0V •Output Voltage Range : 0.8V~5.0V (0.05V increments) •High Accuracy : + 1% •Low Power Consumption : 28μA/ch (TYP.) •Stand-by Current : Less than 0.1μA •Ripple Rejection : 65dB@1kHz •Operating Temperature Range : - 40OC ~ 85OC •Low ESR Capacitor : 1.0μF ceramic capacitors |
| 描述与应用 | •正电压稳压器内置电压检测功能 •输出电流：200mA（极限电流300mA，TYP。） •漏失电压：95mV的@ I OUT=100mA时VOUT=3.0V •工作电压范围：1.5V〜6.0V •输出电压范围：0.8V〜5.0V（0.05V间隔） •高精度：+1％ •低功耗：28μA/ch（典型值） •待机电流小于0.1μA 纹波抑制：65分贝@1KHZ •工作温度范围： - 40℃〜85℃ •低ESR电容：1.0μF陶瓷电容器 |
