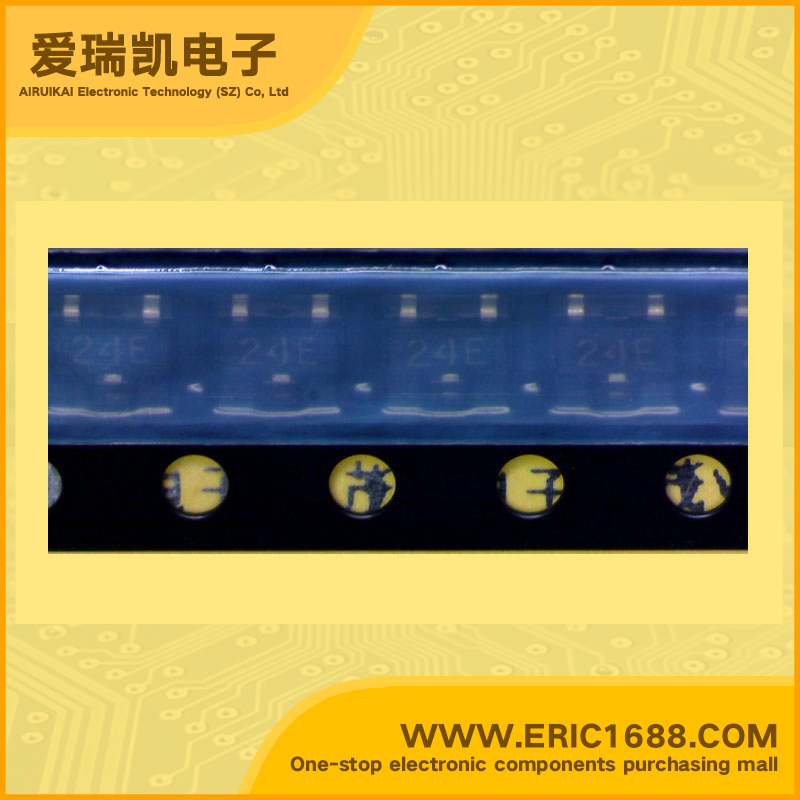

ZR2431F01TA Voltage Reference Power Management IC 1.24 V ~ 15 V SOT-23 marking 24E Adjustable ADJUSTABLE PRECISION ZENER SHUNT REGULATOR
| 参考类型 Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo Voltage - Output | 1.24 V ~ 15 V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | 52ppm/°C |
| 输入电压 Voltage - Input | 1.24 V ~ 15 V |
| 阴极电流 Current - Cathode | 100µA |
| 输出电流IOUT Current - Output | 25mA |
| Description & Applications | FEATURES • ADJUSTABLE PRECISION ZENER SHUNT REGULATOR • Surface mount SOT23, SOT223, SOT89 and SO8 packages • TO92 package • 2.5% and 1% tolerance • Maximum temperature coefficient 52ppm/°C • Temperature compensated for operation over the full temperature range • Programmable output voltage • 100µA to 25mA current sink capability • Low output noise APPLICATIONS • Shunt regulator • Series regulator • Voltage monitor • Over voltage/ under voltage protection • Switch mode power supplies |
| 描述与应用 | 特点 •可调式精密齐纳分流稳压器 •表面贴装SOT23，SOT223，SOT89和SO8封装 •TO92封装 •2.5％和1％的容差 •最高温度系数52ppm/°C •温度补偿在整个温度范围内操作 •可编程输出电压 •100μA到25mA的灌电流能力 •低输出噪声 应用 •并联稳压器 •系列调压器 •电压监视器 •过电压/欠电压保护 •开关模式电源 |
