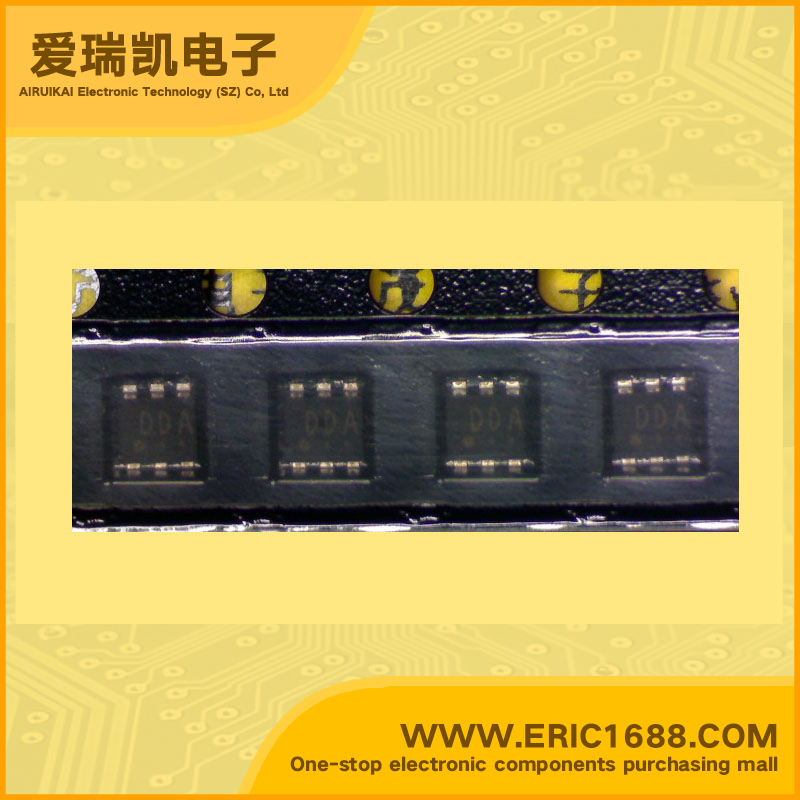

TAH6N201U Constant Current LED Driver linear 2.5V ~ 5.5V 1.17V SOT-363 DDA
| 恒流 Constant Current | 是 YES |
| 恒压 Constant Voltage | |
| 拓扑 Topology | 线性 Linear |
| 输出数 Number of Outputs | 2 |
| 内部驱动器 Internal Driver | |
| 初级类型 Type - Primary | |
| 次级类型 Type - Secondary | 白色 LED White LED |
| 频率 Frequency | |
| 电源电压 Voltage - Supply | 2.5V ~ 5.5V |
| 输出电压 Voltage - Output | 1.17V |
| Description & Applications | FEATURES • TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic • 2-Channel Non Up-convert Type Constant Current Driver IC • Constant current driving not to be influenced by load driving voltage or supply voltage due to built-in reference voltage circuit. (Note 1) • Built-in protection circuit • Need only one external resistor for setting the driving current Note 1: Higher power supply voltage than the total of load supply voltage and VDRIVE(SAT). |
| 描述与应用 | 特点 •东芝双极型线性集成电路硅单片 •双通道非向上转换型恒流驱动IC •恒流驱动不影响负载的驱动电压或电源电压，由于内置在参考电压电路。 （注1） •内置保护电路 •只需要一个外部电阻设置的驱动电流 注1：较高的电源电压比总负载电源电压和VDRIVE（SAT）。 |
