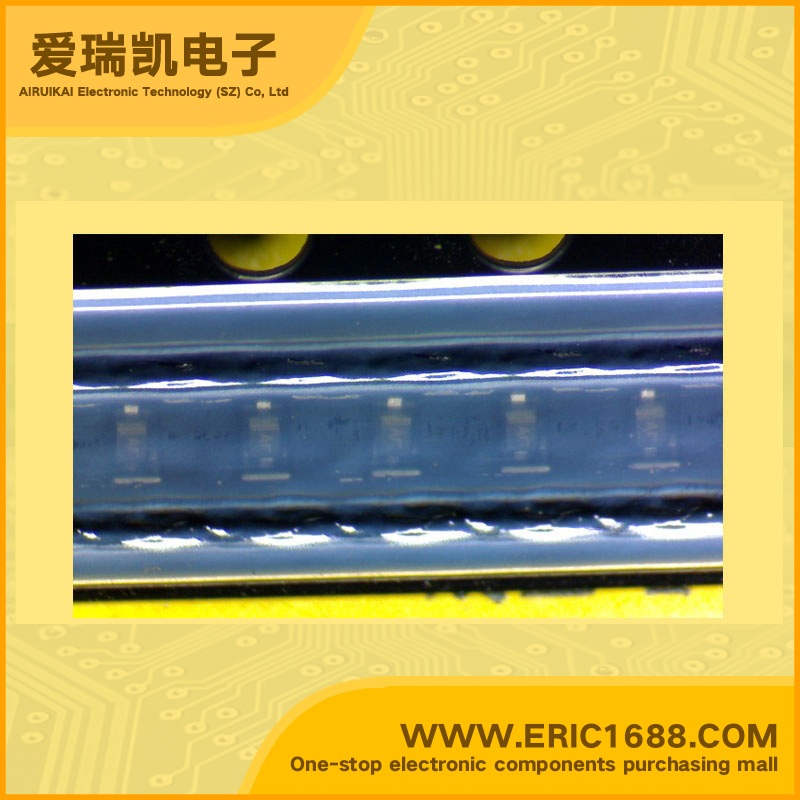

ESD9X3.3ST5G TVS/ESD 3.3V 9.8A 0.15W/150mW SOD923-3.3v marking AK

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
3.3V
反向击穿电压VBR
Breakdown Voltage
5.5V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
102W
峰值脉冲电流IPPm
Peak Forward Surge Current
9.8A
额定耗散功率Pd
Power dissipation
0.15W/150mW
Description & ApplicationsESD Protection Diodes In Ultra Small SOD−923 Package;Specification Features • Small Body Outline Dimensions:0.039″ x 0.024″(1.0 mm x 0.60 mm) • Low Body Height: 0.017″ (0.43 mm) Max • Stand−off Voltage: 3.3 V − 12 V • Low Leakage • Response Time is Typically < 1 ns • ESD Rating of Class 3 (> 16 kV) per Human Body Model • IEC61000−4−2 Level 4 ESD Protection • These are Pb−Free Devices
描述与应用ESD保护二极管 在超小SOD-923封装;规格特性 •小体外形尺寸:0.039“×0.024”(1.0毫米x0.60毫米) •低主体高度:0.017“(0.43毫米)最大 •关断电压电压:3.3 V - 12 V •低漏 •响应时间通常小于1 ns •每人体模型ESD额定值的3类(16千伏) •IEC61000-4-24级ESD保护 •这些都是无铅设备
