KRA560U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W HEF=120 R1=4.7KΩ SOT-353/usv/SC70-5 marking PK switching inverting interface driver circuit

Model：KRA560U

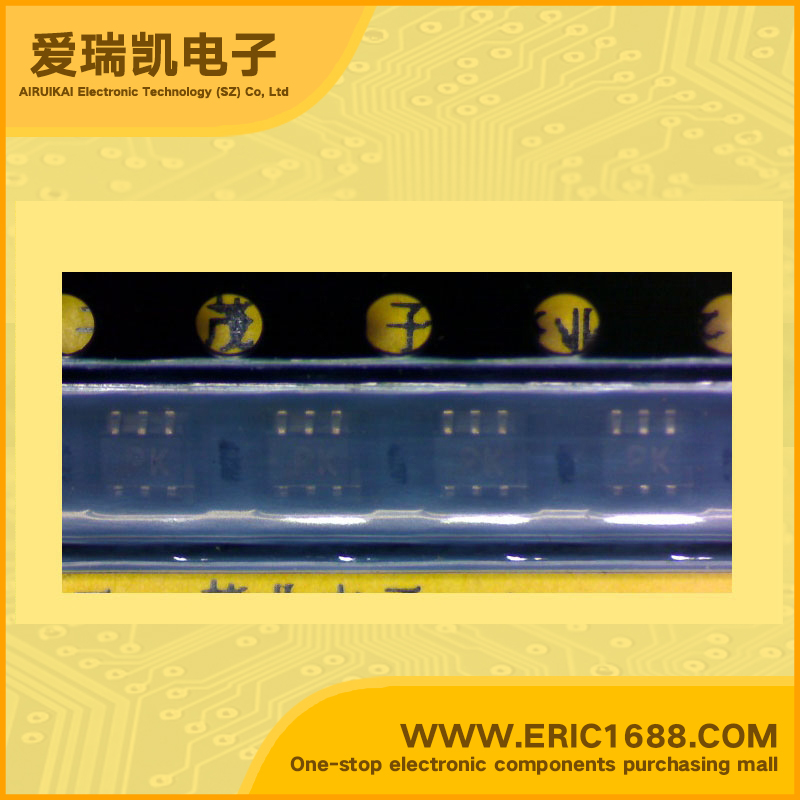

Mark / screen / code / typing：PK
Manufacturer：
Date Code：05+NOPB
Package：SOT-353/usv/SC70-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA/-0.1A
Input Resistance(R1)	4.7KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)	120
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. FEATURES With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Packing Density
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
KRA556E PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=4.7KΩ R2=47KΩ SOT-553/TESV marking PF switching inverting interface driver circuit	KRA556E Mark：PF Package：SOT-553/TESV	-	Batch number：05+NOPB	0 Min Order:10
KRA760U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120 R1=4.7KΩ 200mW/0.2W SOT-363/US6/SC70-6 marking PK switching inverting interface driver circuit	KRA760U Mark：PK Package：SOT-363/US6/SC70-6	-	Batch number：05+NOPB3KM	11900 Min Order:10
KRA755U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=2.2KΩ R2=47KΩ SOT-363/US6/SC70-6 marking PE switching inverting interface driver circuit	KRA755U Mark：PE Package：SOT-363/US6/SC70-6	-	Batch number：05+NOPB	2500 Min Order:10
KRA309 PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.1W/100mW SOT-323/SC-70/USM marking PJ switch inverter interface driver circuit	KRA309 Mark：PJ Package：SOT-323/SC-70/USM	-	Batch number：05+NOPB2800	10300 Min Order:10
KRA304V PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.1W/100mW SOT-723/VSM marking PD switch inverter interface driver circuit	KRA304V Mark：PD Package：SOT-723/VSM	-	Batch number：05+NOPB3800	11800 Min Order:10
KTC4378-Y NPN Transistors(BJT) 80V 1A 150MHz 30~320 150mV~500mV SOT-89 marking TY voltage regulator，relay	KTC4378-Y Mark：TY Package：SOT-89	-	Batch number：nopb 08+NOPB	600 Min Order:10
KRA322 PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.1W/100mW SOT-323/SC-70/USM marking P9 switch inverter interface driver circuit	KRA322 Mark：P9 Package：SOT-323/SC-70/USM	-	Batch number：05+NOPB2600	8600 Min Order:10
