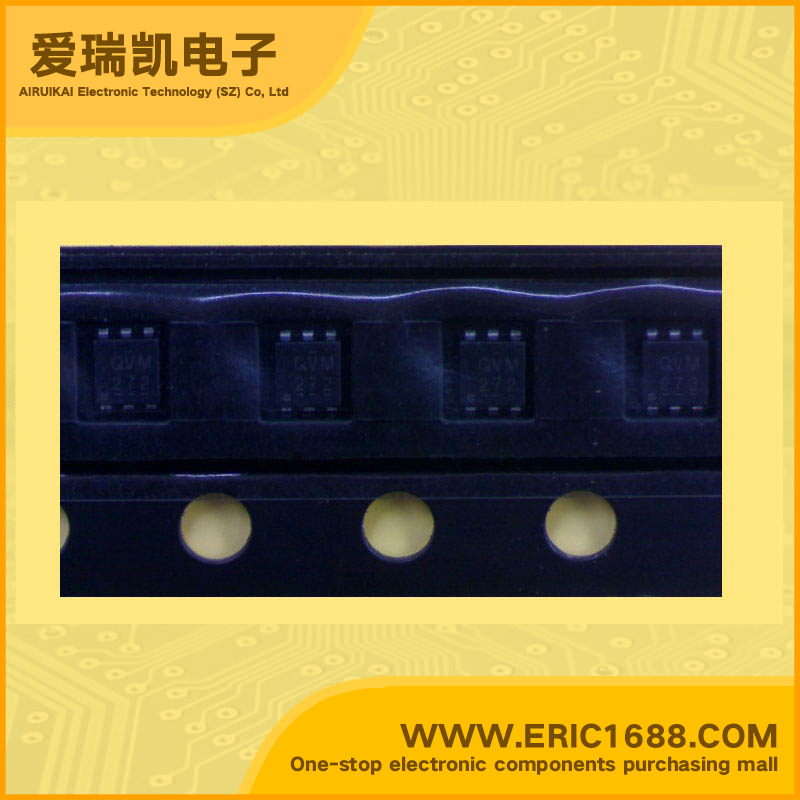

S-1711A2626-16VYG LDO Voltage Regulator 2.6/2.6V 240mV/0.24V With Enable Pin SNT-6A marking QVM Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
2
输入电压VIN
Voltage - Input
0.3~7V
输出电压VOUT
Voltage - Output
2.6/2.6V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
240mV/0.24V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
400mW/0.4W
Description & ApplicationsSUPER-SMALL PACKAGE 2-CIRCUIT HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR ;•Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps. • Low ESR capacitor can be used: A ceramic capacitor of 1.0 μF or more can be used for the output capacitor. • Wide input voltage range: 2.0 V to 6.5 V • High-accuracy output voltage: ±1.0% • Low dropout voltage: 200 mV typ. (3.0 V output product, IOUT = 150 mA) • Low current consumption: During operation: 70 μA typ., 90 μA max. (Per circuit) During shutdown: 0.1 μA typ., 1.0 μA max. • Output current: 150 mA output is possible (at VIN ≥ VOUT(S) + 1.0 V) • High ripple rejection: 70 dB typ. (at 1.0 kHz) • Built-in overcurrent protector: Overcurrent of output transistor can be restricted. • Built-in ON/OFF circuit: Ensures long battery life. • Discharge shunt circuit can be selected. • Pull-down or pull-down resistor can be selected.
描述与应用超小型双电路高纹波抑制 低压差CMOS电压稳压器;•输出电压:1.5 V至5.5 V,0.1 V步骤选择。 •可以使用低ESR电容:1.0μF以上的陶瓷电容器可用于输出电容。 •宽输入电压范围:2.0 V至6.5 V •高输出电压精度:±1.0% •低压差电压:200 mV典型。 (3.0 V输出产品,IOUT= 150毫安) •低电流消耗:在操作过程中:70μA(典型值),最大90μA。 (每个电路) 休眠时:0.1μA(典型值),1.0μA最大值。 •输出电流:150 mA输出是可能的(在VIN≥VOUT(S)+1.0 V) •高纹波抑制:70 dB(典型值)。 (1.0千赫) •内置过载电流保护:可以限制输出晶体管的过载电流。 •内置开/关控制电路,确保电池寿命长。 •放电分路电路可以选择。 •下拉可以选择或下拉电阻。
