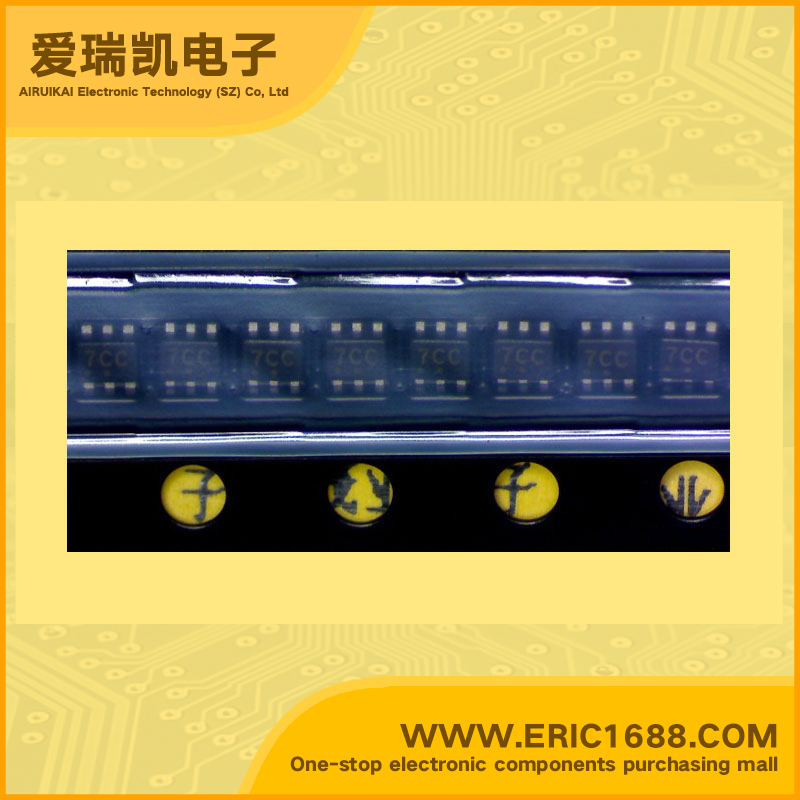

NSBC144EDXV6T5 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA HEF=80~140 R1=R2=47KΩ 500mW/0.5W SOT-563 marking 7C switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 50V
集电极连续输出电流IC Collector Current(IC) 100mA
Q1基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 47KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio 1
Q2基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 47KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE) 140
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation 500mW/0.5W
Description & Applications Features •Dual Bias Resistor Transistors •NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network •Simplifies Circuit Design •Reduces Board Space •Reduces Component Count •Lead−Free Solder Plating •These are Pb−Free Devices
描述与应用 特点 •双偏置电阻晶体管 •NPN硅表面贴装晶体管与单片偏置电阻网络 •简化电路设计 •缩小板级空间 •减少元件数量 •无铅焊料电镀 •这些都是Pb-Free设备
