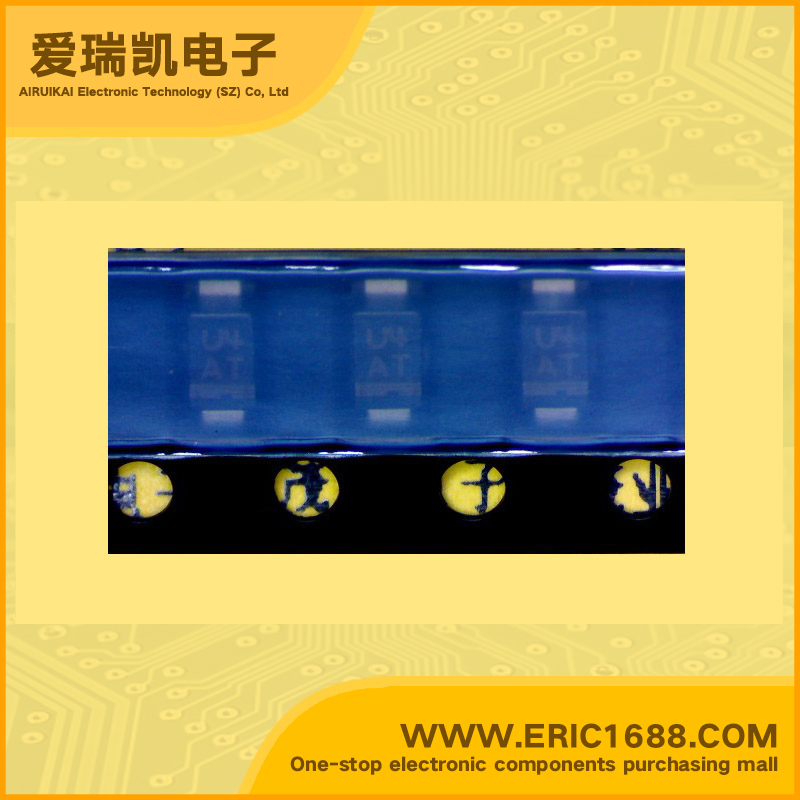

SMF8V5A-GS08 TVS/ESD 8.5V 13.9A SOD-123/1206-8.5V marking U4

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
8.5V
反向击穿电压VBR
Breakdown Voltage
9.44V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
200W
峰值脉冲电流IPPm
Peak Forward Surge Current
13.9A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES • Surface Mount ESD Protection Diodes • For surface mounted applications • Low-profile package • Optimized for LAN protection applications • Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 (IEC 801-2) • Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 (IEC 801-4) • ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge • Low incremental surge resistance, excellent clamping capability • 200 W peak pulse power capability with a 10/1000 µs waveform, repetition rate (duty cycle): 0.01 % • Very fast response time • High temperature soldering guaranteed: 260 °C/10 s at terminals • e3 - Sn • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC • Halogen-free according to IEC 61249-2-21 definiton
描述与应用特点 •表面贴装ESD保护二极管 •对于表面安装应用 •薄型封装 •优化局域网保护应用 •适用于数据线的ESD保护符合IEC61000-4-2(IEC801-2) •适用于EFT保护的数据线根据IEC61000-4-4(IEC801-4) •ESD保护ACC。 IEC61000-4-2 ±30 kV接触放电 ±30 kV空气放电 •低增量浪涌性,优良的钳位能力 •200瓦峰值脉冲功率能力与10/1000微秒波形,重复率(占空比):0.01% •非常快的响应时间 •高温焊接保证:260°C/10秒终端 ·E3 - 锡 •通过AEC-Q101资格 •符合RoHS指令2002/95/EC和按照WEEE 2002/96/EC •无卤素根据IEC61249-2-21 定义的
