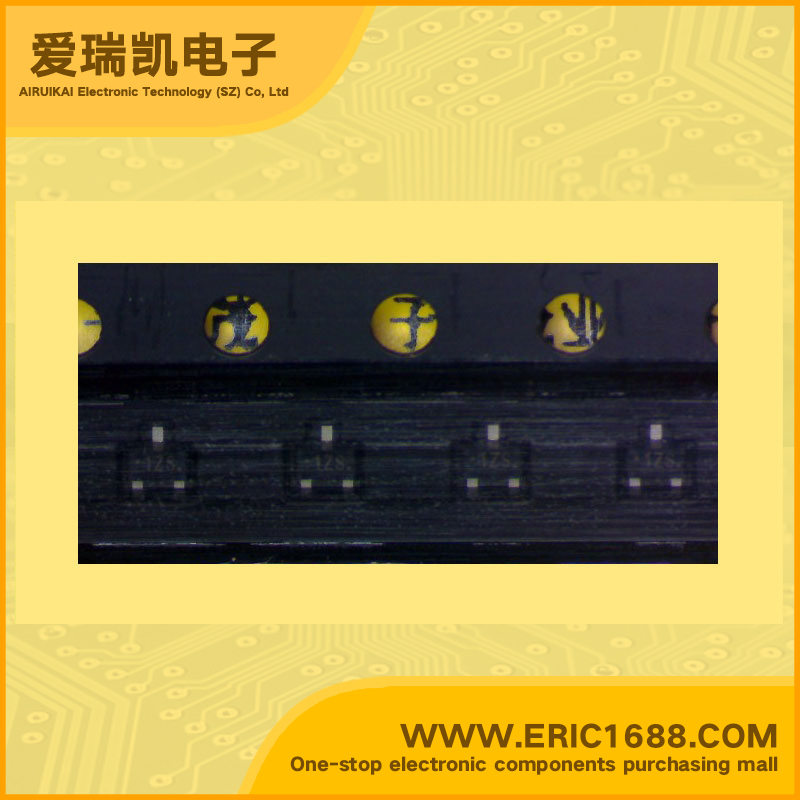

2SD2345J-S NPN Transistors(BJT) 50V 50mA 120MHz 600~1200 50mV SOT-523/SC-75 marking 1ZS low-frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 120MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 600~1200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 50mV |
| 耗散功率Pc Power Dissipation | 125mW/0.125W |
| Description & Applications | Silicon NPN epitaxial planar type For low-frequency amplification Features High foward current transfer ratio hFE. Low collector to emitter saturation voltage VCE(sat) High emitter to base voltage VEBO. Low noise voltage NV |
| 描述与应用 | NPN硅外延平面型 对于低频放大 特点 高正向电流传输比HFE。 低集电极到发射极饱和电压VCE（SAT） 高发射器基极电压VEBO。 低噪声电压NV |
