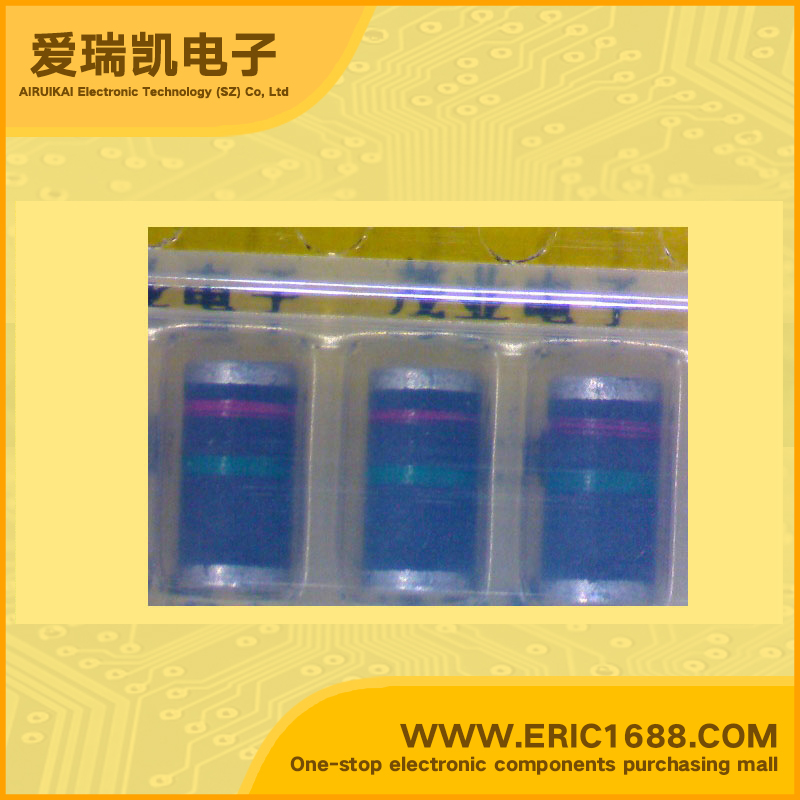

BYM11-600 Fast Recovery Diodes 600V 1A 1.3V 250nS DO-213AB switch rectifier/High forward surge capability/low leakage current
| 反向电压Vr Reverse Voltage | 600V |
| 平均整流电流Io AverAge Rectified Current | 1A |
| 最大正向电压降VF Forward Voltage(Vf) | 1.3V |
| 反向恢复时间Trr Reverse Recovery Time | 250nS |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Surface Mount Glass Passivated Junction Fast Switching Rectifier • Superectifier structure for high reliability condition • Patented glass-plastic encapsulation technique • Ideal for automated placement • Fast switching for high efficiency • Low leakage current • High forward surge capability • Meets environmental standard MIL-S-19500 • Meets MSL level 1, per J-STD-020C, LF max peak of 250 °C • Solder Dip 260 °C, 40 seconds • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICATIONS For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication. |
| 描述与应用 | 表面贴装玻璃钝化结快速 开关整流器 •适合自动放置 •高效率的快速切换 •低漏电流 •高正向浪涌能力 •符合环保标准MIL-S-19500 •会见MSL每1，J-STD-020C，LF最大峰值 250℃ |
