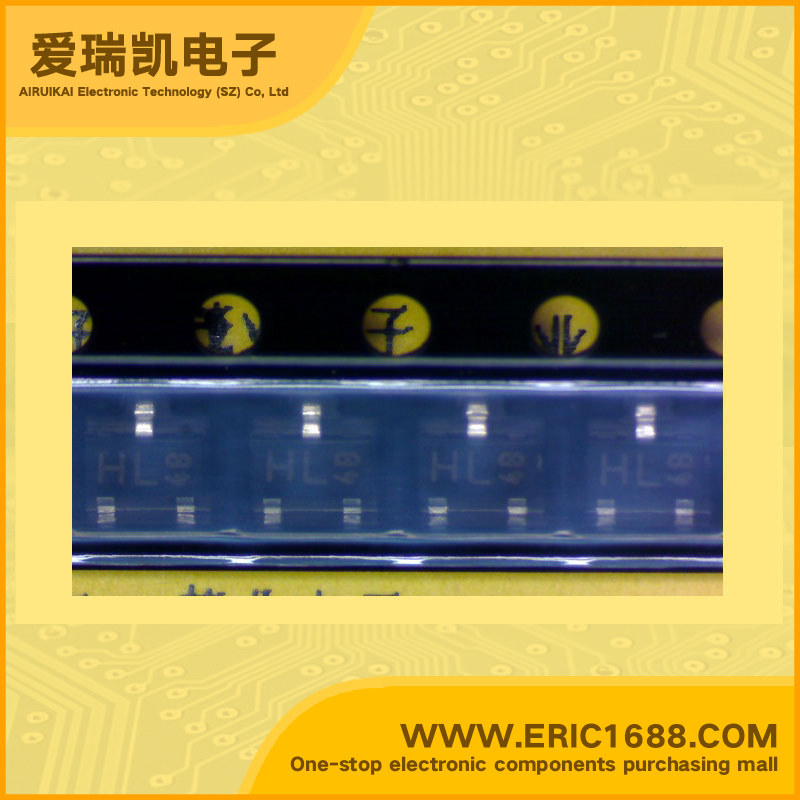

KTC3552T NPN Transistors(BJT) 80V 600mA/0.6a 380MHz 200~560 140mV/0.14V SOT-23/SC-59 marking HL VHF/UHF wide band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 600mA/0.6A |
| 截止频率fT Transtion Frequency(fT) | 380MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~560 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 140mV/0.14V |
| 耗散功率Pc Power Dissipation | 900mW/0.9W |
| Description & Applications | DC-DC CONVERTERS RELAY DRIVERS, LAMP DRIVERS, MOTOR DRIVERS, STROBES APPLICATION. FEATURES ·Adoption of FBET, MBIT Processes. ·High Current Capacitance. ·Low Collector-to-Emitter Saturation Voltage. ·High-Speed Switching. ·Ultrasmall Package Facilitates Miniaturization in end Products. ·High Allowable Power Dissipation. ·Complementary to KTA1552T. |
| 描述与应用 | DC-DC转换器的继电器驱动器，灯驱动器， 电机驱动器，闪光灯应用。 特点 ·采用FBET，MBIT过程。 ·高电流电容。 ·低集电极 - 发射极饱和电压。 ·高速开关。 ·超小包装便于在终端产品的小型化。 ·高允许功耗。 ·互补KTA1552T。 |
