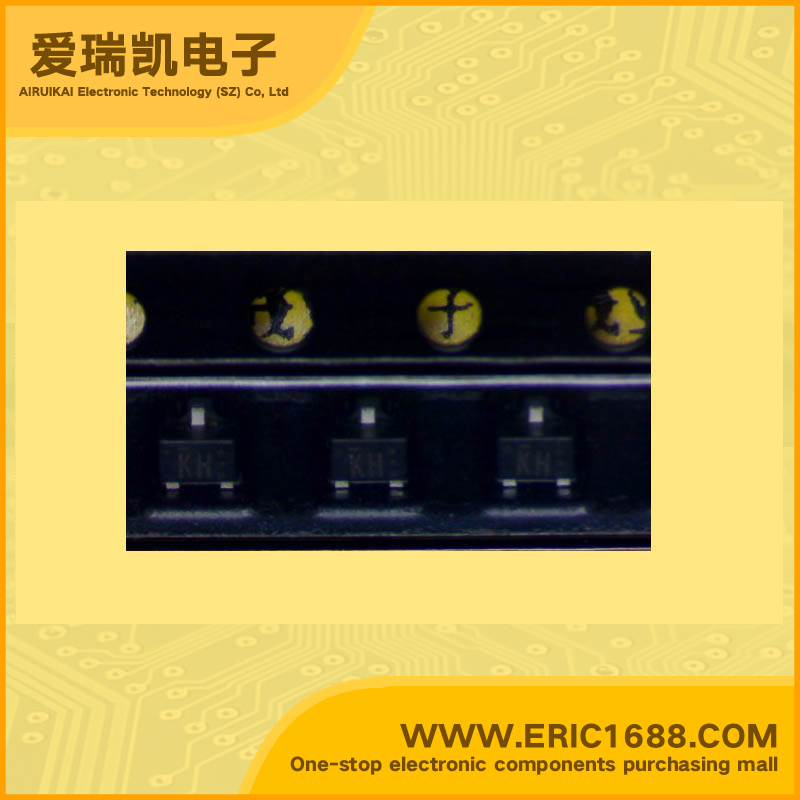

UNR52AMG NPN Bipolar Digital Transistor (BRT) 50V 80mA 2.2k 47k SOT-323/SC-70 marking KH digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 80mA |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.047 |
| 直流电流增益hFE DC Current Gain(hFE) | 80 |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Silicon NPN epitaxial planer transistr For digital circuits Features Costs can be reduced through downsizing of the equipment and reduction of the number of parts. S-Mini type package, allowing downsizing of the equipment and automatic insertion through tape packing and magazine packing. |
| 描述与应用 | NPN硅外延平面晶体管的 用于数字电路 特性 成本可降低通过减员设备和 减少部件的数量。 迷你型包装，使瘦身的设备和 通过自动插入磁带包装盒包装 |
