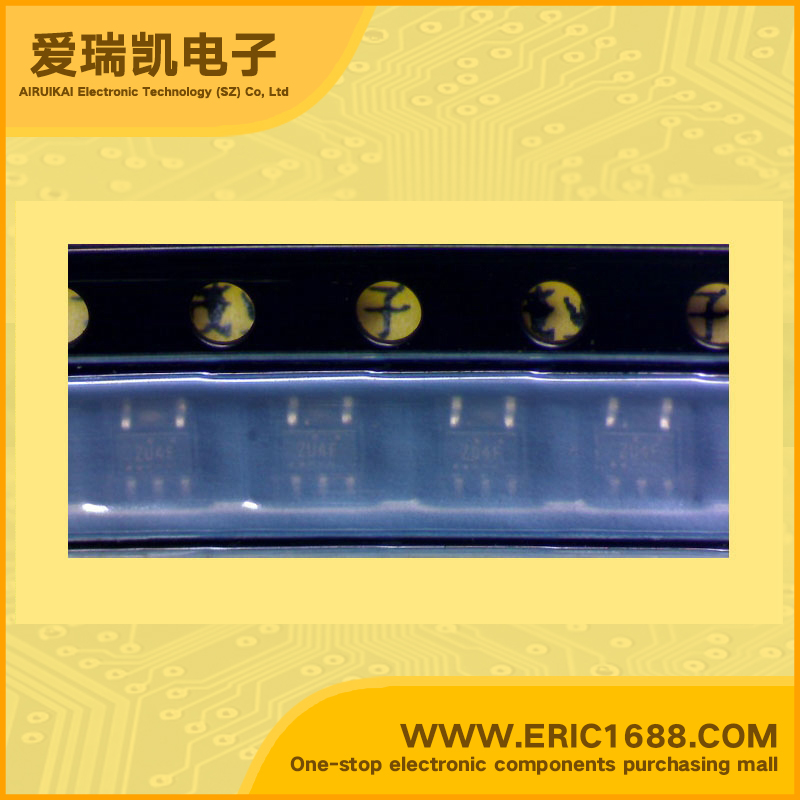

Integrated Circuit（IC） inverter NC7SZU04P5X SOT-353/SC70-5/SC-88A marking ZU4
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -16mA，16mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5ns @ 5V，50pF |
| Description & Applications | Features TinyLogic UHS Unbuffered Inverter Space saving SOT23 or SC70 5-lead package Ultra small MicroPak leadless package Unbuffered for crystal oscillator and analog applications Balanced Output Drive; ± 16 mA at 4.5V VCC Broad VCC Operating Range; 1.65V–5.5V Low Quiescent Power; ICC < 2 µA, VCC = 5.5V, TA = 25°C |
| 描述与应用 | 特性 TinyLogicUHS无缓冲反相器 节省空间的SOT23或SC705引线封装 超小型的MicroPak无铅封装 无缓冲的晶体振荡器和模拟应用 平衡输出驱动器，±16 mA在4.5V VCC 宽VCC工作电压范围1.65V-5.5V 静态功耗低; ICC<2μA，VCC= 5.5V，TA= 25°C |
