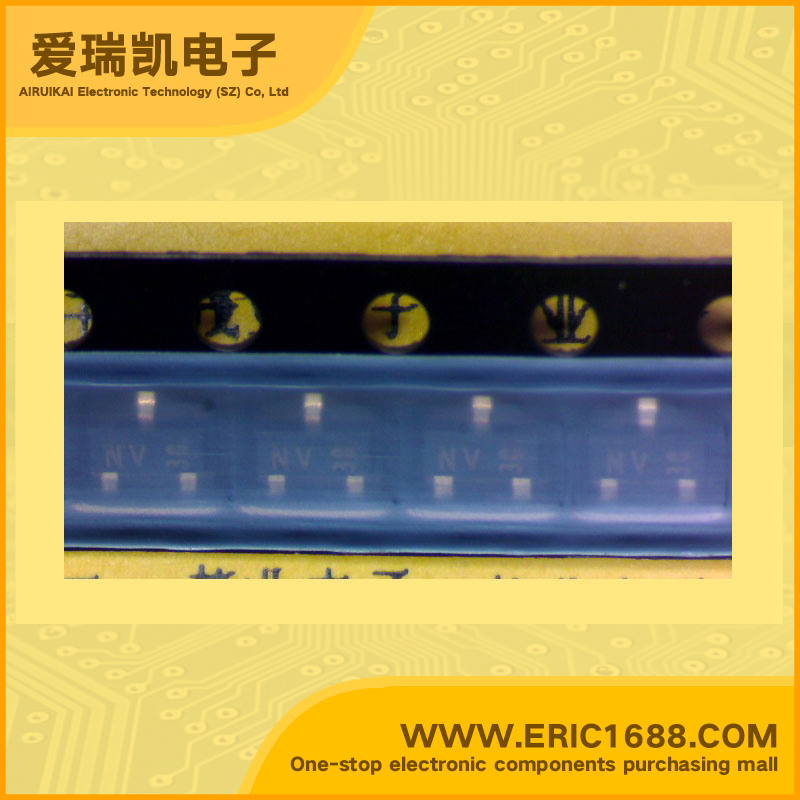

KRC246S NPN Bipolar Digital Transistor (BRT) 800mA/0.8A 2.2k 10k SOT-23/SC-59 marking NV high current switch interface circuit driver circuit

Price (excluding freight):
Batches(PCS):
$0.036
≤99
$0.032
≤499
$0.027
≤999
$0.023
≤2999
$0.022
FCL

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)800mA/0.8A
基极输入电阻R1 Input Resistance(R1)2.2KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.22
直流电流增益hFE DC Current Gain(hFE)56
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFEATURES HIGH CURRENT SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Output Current:800mA
描述与应用特性 高电流开关应用。 接口电路和驱动电路应用。 内置偏置电阻器。 简化电路设计。 减少了部件数量和制造工艺。 高输出电流:800mA
