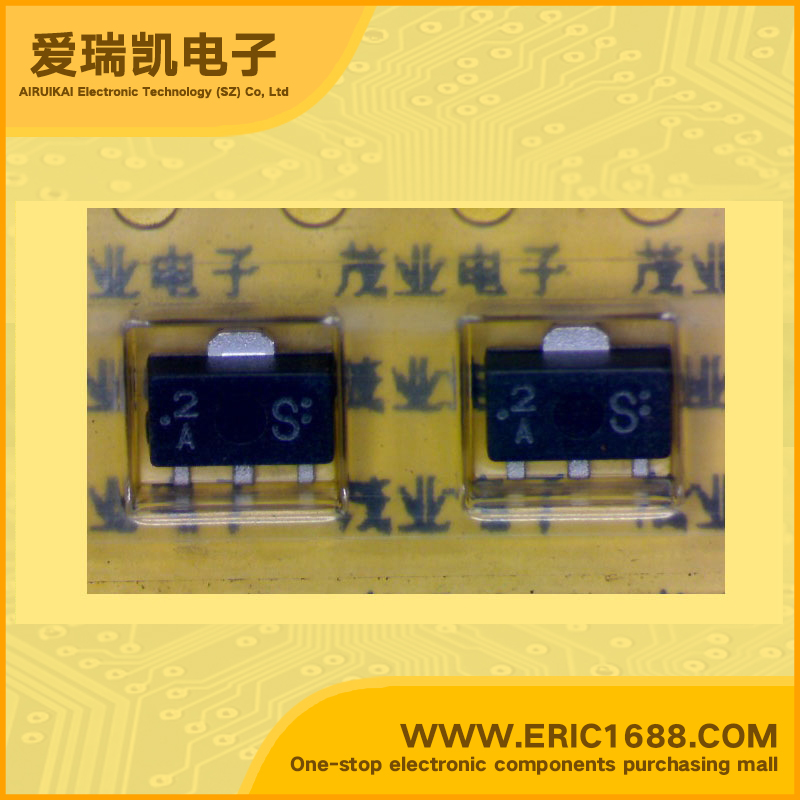

2SC5026-S NPN Transistors(BJT) 80V 1A 120MHz 170~340 2V SOT-89/SC-62 marking 2AS low frequency output amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 80V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 120MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 170~340 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 2V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | Features • Silicon NPN epitaxial planer type • For low-frequency output amplification Complementary to 2SA1890 • Low collector to emitter saturation voltage VCE(sat) • High collector to emitter voltage VCEO. • Mini Power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | 特点 •NPN硅外延平面型 •对于低频输出放大互补2SA1890 •低集电极到发射极饱和电压VCE（SAT） •高集电极到发射极电压VCEO。 •迷你功率型封装，允许缩减设备通过自动插入带包装盒包装 |
