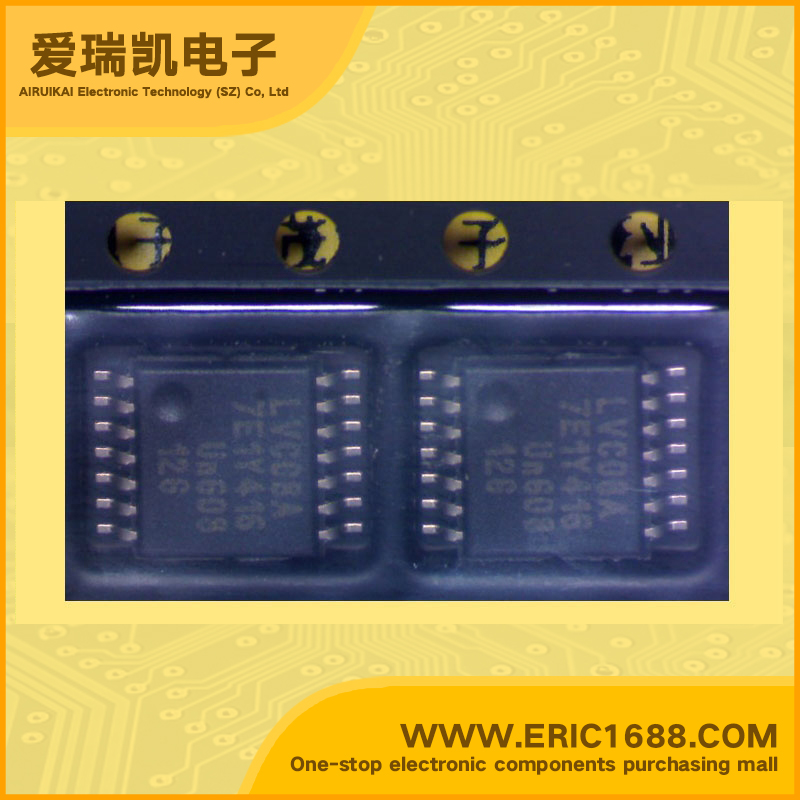

Integrated Circuit（IC） AND gate 74LVC08A TSSOP14 marking LVC08A
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 4 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65V~3.6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -24mA，24mA |
| 低逻辑电平 Logic Level - Low | 0.7V~0.8V |
| 高逻辑电平 Logic Level - High | 1.7V~2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.9ns @ 3.3V，50pF |
| Description & Applications | Quad 2-input AND gate；FEATURES • Wide supply voltage range of 1.2 V to 3.6 V • In accordance with JEDEC standard no. 8-1A • Inputs accept voltages up to 5.5 V • CMOS low power consumption • Direct interface with TTL levels |
| 描述与应用 | 四路2输入与门；特性 •宽电源电压范围为1.2 V至3.6 V •在按照JEDEC标准编号 8-1A •输入接受高达5.5 V的电压 •CMOS低功耗 •直接接口TTL水平 |
