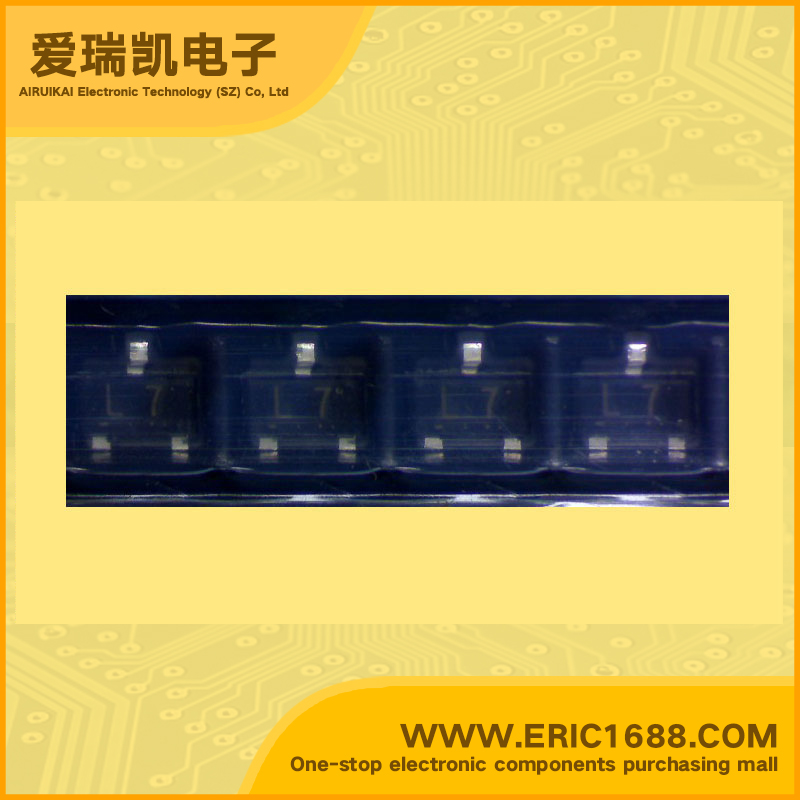

2SC1623 NPN Transistors(BJT) 60V 100mA/0.1A 250MHz 300~600 300mV/0.3V SOT-23/SC-59 marking L7 Audio frequency High gain amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 300~600 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | AUDIO FREQUENCY GENERAL PURPOSE AMPLIFIER NPN SILICON EPITAXIAL TRANSISTOR MINI MOLD FEATURES High DC Current Gain: hFE = 200 TYP. (VCE = 6.0 V, IC = 1.0 mA) High Voltage: VCEO = 50 V |
| 描述与应用 | NPN硅外延晶体管, 音频通用放大器 . 特点: 高DC电流增益 高电压：VCEO= 50 V |
