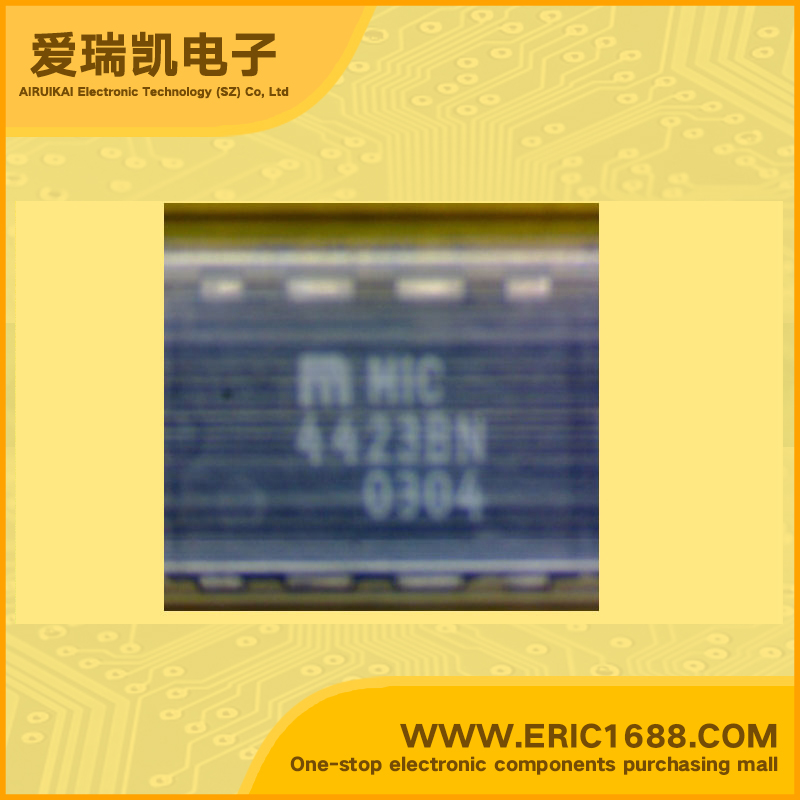

MIC4423BN MOSFET/Bridge Driver PMIC inverting 4.5V ~ 18V 3A PDIP-08L marking MIC4423BN Dual 3A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process

Hot selling goods

Product description
驱动器类型(配置/类型)
Type/Configuration
低端 Low-Side
驱动器数量(配置数)
Number of Configurations
2
输入类型
Input Type
反相 Inverting
导通电阻
On-State Resistance
峰值输出电流
Current - Peak
3A
输出端数量
Number of Outputs
2
电源电压
Voltage - Supply
4.5V ~ 18V
Description & ApplicationsFEATURES • Dual 3A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process • Reliable, low-power bipolar/CMOS/DMOS construction • Latch-up protected to >500mA reverse current • Logic input withstands swing to –5V • High 3A-peak output current • Wide 4.5V to 18V operating range • Drives 1800pF capacitance in 25ns • Short <40ns typical delay time • Delay times consistent with in supply voltage change • Matched rise and fall times • TTL logic input independent of supply voltage • Low equivalent 6pF input capacitance • Low supply current 3.5mA with logic-1 input 350µA with logic-0 input • Low 3.5Ω typical output impedance • Output voltage swings within 25mV of ground or VS • 426/7/8-, ‘1426/7/8-, ‘4426/7/8-compatible pinout • Inverting, noninverting, and differential configurations
描述与应用特点 •双3A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS工艺 •可靠,低功耗的双极/ CMOS/ DMOS建设 •闭锁>500mA的反向电流保护 •逻辑输入可承受摆动到-5V •高3A峰值输出电流 •4.5V至18V的宽工作范围 •驱动1800PF电容为25ns •短<40ns的典型的延迟时间 •延迟时间的一致,在电源电压变化 •匹配的上升和下降时间 •TTL逻辑输入与电源电压无关 •低等效的6PF输入电容 •低电源电流3.5mA逻辑0输入逻辑1输入350μA •低3.5Ω典型的输出阻抗 •地面或VS25mV的输出电压波动范围内 •'426/7/8-,'1426/7/8-,'4426/7/8-compatible的引出线 •反相,同相,和差分配置
