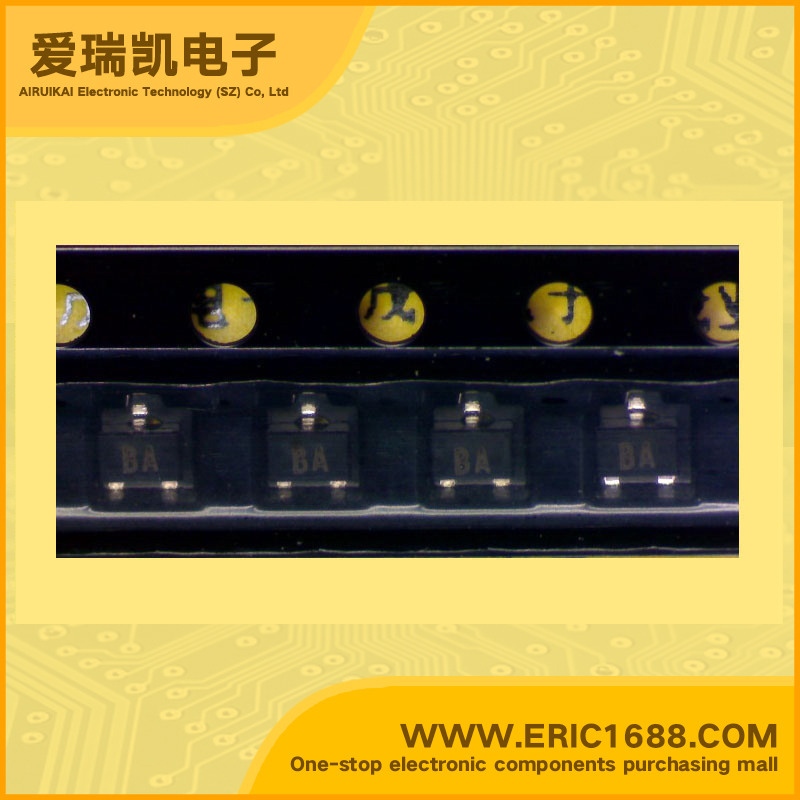

PG05BAUSM TVS/ESD 5V 6.7A SOT-323/TFSM marking BA
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.46V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 60W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 6.7A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features • TVS Diode for ESD Protection in Portable Electronics ·Transient protection for data lines to IEC 61000-4-2(ESD) 15kV(Air), 8kV(Contact) ·Small package for use in portable electronics. ·Suitable replacement for Multi-Layer Varistors in ESD protection applications. ·Protects one I/O or power line. ·Low clamping voltage. ·Low leakage current. |
| 描述与应用 | 特性 • TVS二极管的ESD保护便携式电子产品 ·瞬态保护数据线IEC61000-4-2（ESD）15kV（空气），8kV（接触） ·使用小包装便于便携式产品使用 ·合适的替代品多层压敏电阻器在ESD保护应用 ·保护一个I / O或电源线 ·低钳位电压。 ·低漏电电流 |
