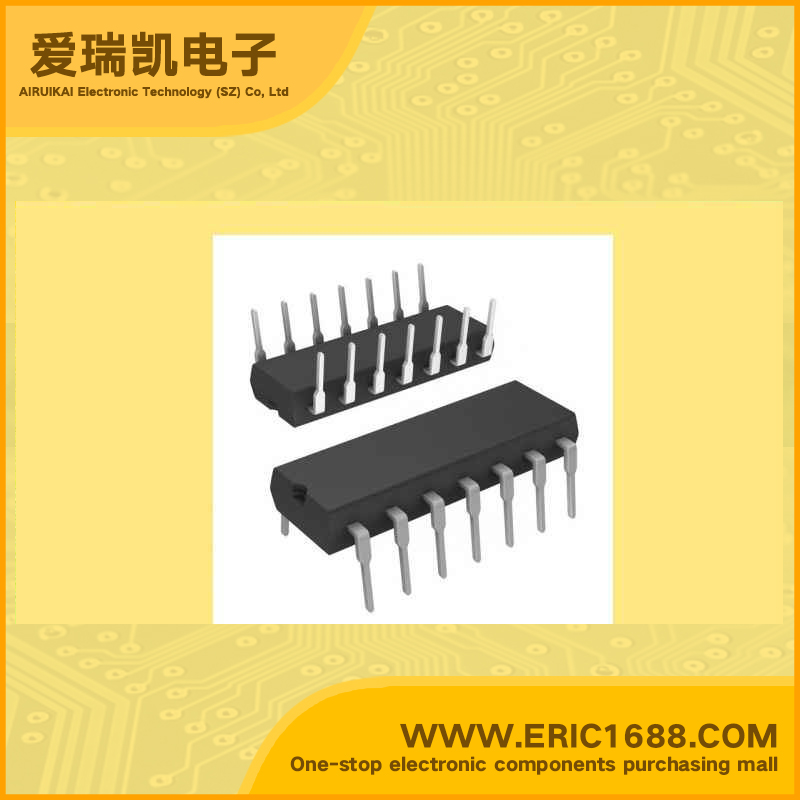

MIC5016BN MOSFET/Bridge Driver PMIC non-inverting 2.75V ~ 30V PDIP-14L marking MIC5016BN Automotive electrical load control
| 驱动器类型（配置/类型） Type/Configuration | 高端和低端，独立 High and Low Side, Independent |
| 驱动器数量（配置数） Number of Configurations | 1 |
| 输入类型 Input Type | 非反相 Non-Inverting |
| 导通电阻 On-State Resistance | |
| 峰值输出电流 Current - Peak | |
| 输出端数量 Number of Outputs | 2 |
| 电源电压 Voltage - Supply | 2.75V ~ 30V |
| Description & Applications | FEATURES • Low-Cost Dual High- or Low-Side MOSFET Driver Final Information • 2.75V to 30V operation • 100µA maximum supply current (5V supply) • 15µA typical off-state current • Internal charge pump • TTL compatible input • Withstands 60V transient (load dump) • Reverse battery protected to –20V • Inductive spike protected to –20V • Overvoltage shutdown at 35V • Internal 15V gate protection • Minimum external parts • Operates in high-side or low-side configurations • 1µA control input pull-off • Inverting and noninverting versions Applications • Automotive electrical load control • Battery-powered computer power management • Lamp control • Heater control • Motor control • Power bus switching |
| 描述与应用 | 特点 •低成本双高或低侧MOSFET驱动器最后的信息 •2.75V至30V操作 •100μA最大电源电流（5V电源） •15μA典型关断状态电流 •内部电荷泵 •TTL兼容的输入 •可承受60V瞬态（抛负载） •反向电池保护，以-20V •电感尖峰保护至-20V •35V过压关断 •内部15V栅极保护 •最少的外部部件 •工作在高侧或低侧配置 •的1μA控制输入拉断 •反相和同相的版本 应用 •汽车电子负载控制 •电池供电的电脑电源管理 •灯控制 •加热器控制 •电机控制 •电源总线切换 |
