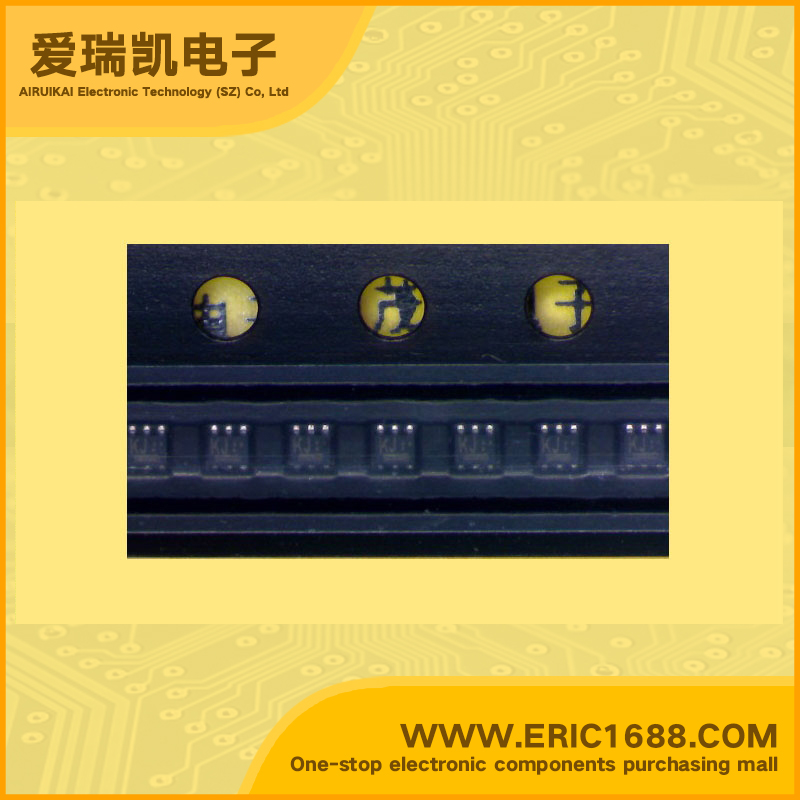

RN2973FS PNP+PNP Complex Bipolar Digital Transistor -20V -50mA HEF=300 R1=47KΩ 50mW SOT-963/FS6 marking KJ switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -50MA
 Input Resistance(R1)  47KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)  300
Transtion Frequency(fT)
Power Dissipation (Pd)  50MW
Description & Applications  TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) (Bias Resistor built-in Transistor)

Switching, Inverter Circuit, Interface Circuit and
Driver Circuit Applications

• Two devices are incorporated into a fine pitch small mold (6-pin)
package.
• Incorporating a bias resistor into a transistor reduces parts count.
Reducing the parts count enables the manufacture of ever more
compact equipment and lowers assembly cost.
