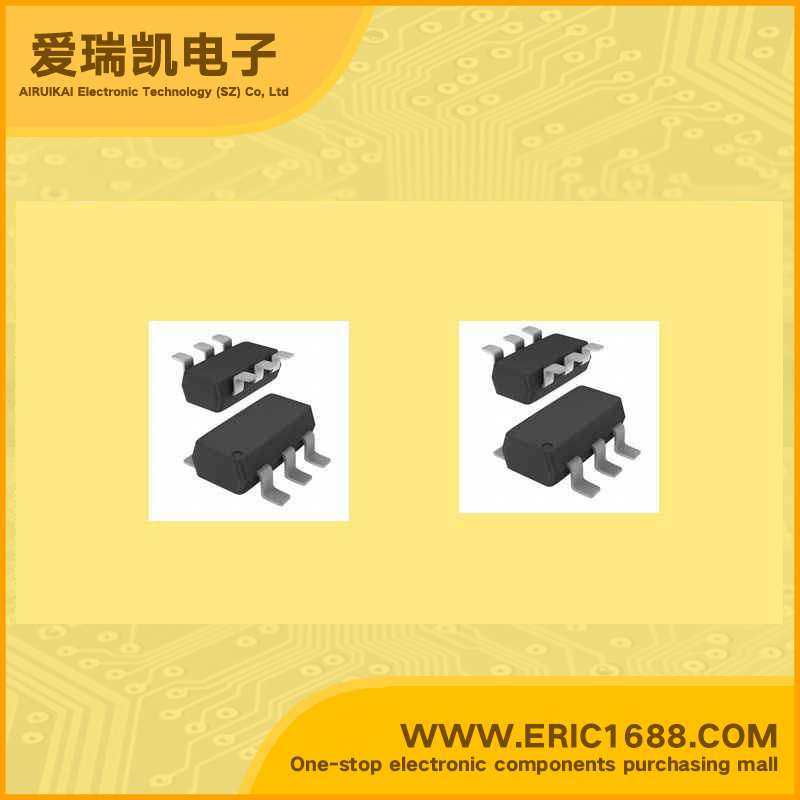

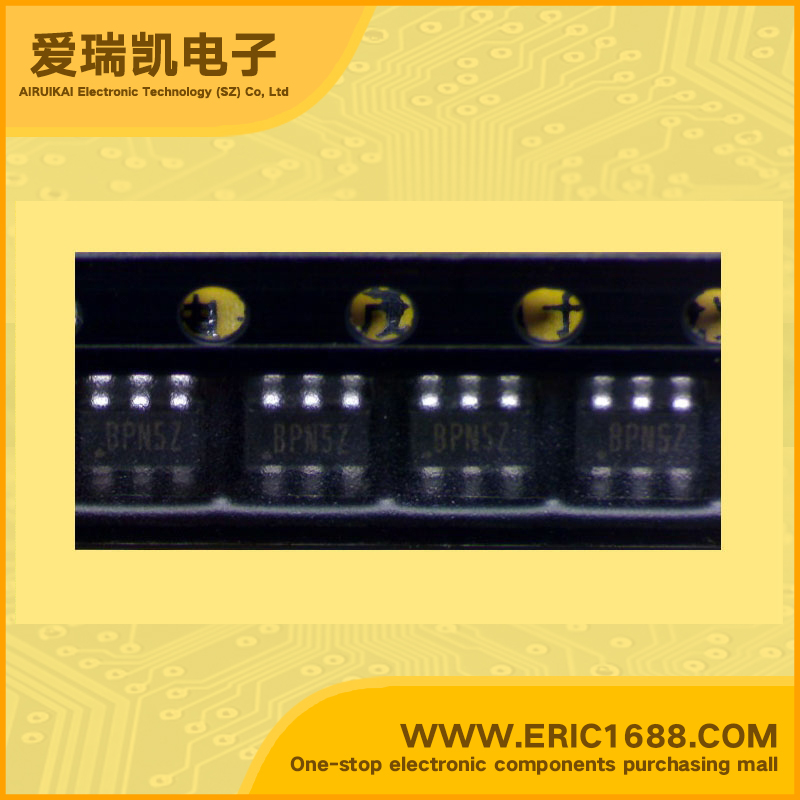

AAT3111IGU-3.3-T1 Charge Pump PMIC SOT-163/SOT23-6 marking BPN5Z Step-up type voltage converter
| 功能 Type | |
| 工作电压 Voltage - Supply | 1.8V ~ 3.3V |
| 输出电压 Out Voltage | 3.3V |
| 输出电流 Output Current | 100mA/0.1A |
| 效率 Efficiency(%) | 91% |
| 震荡频率 Oscillation Frequency | 750kHz |
| Description & Applications | FEATURES • MicroPower™ Regulated Charge Pump • Step-up type voltage converter • Input Range • AAT3111-3.6: 1.8V to 3.6V • AAT3111-3.3: 1.8V to 3.3V • MicroPower consumption: 20µA • 3.6V, 3.3V Regulated ±4% output • 3.6V Output Current • 100mA with VIN ≥ 3.0V • 20mA with VIN ≥ 2.0V • 3.3V Output Current • 100mA with VIN ≥ 2.5V • 20mA with VIN ≥ 1.8V • High Frequency 750 kHz operation • Shutdown mode draws less than 1µA • Short-circuit/over-temperature protection • 2kV ESD Rating • SC70JW-8 or SOT23-6 package Applications • Handheld Electronics • Digital Cameras • PDAs • Battery Back Up Supplies • MP3 Players |
| 描述与应用 | 特点 •微™稳压电荷泵 •升压型电压转换器 •输入范围 AAT3111-3.6：1.8V至3.6V AAT3111-3.3：1.8V至3.3V •功率消耗：20μA •3.6V，3.3V稳压输出±4％ •3.6V输出电流 •100毫安与VIN≥3.0V •VIN20mA带≥2.0V •3.3V输出电流 •100毫安与VIN≥2.5V •VIN20mA带≥1.8V •高频率750 kHz的工作频率 •关断模式下电流消耗低于1μA •Short-circuit/over-temperature保护 •2kV的ESD额定值 •SC70JW-8或SOT23-6封装 应用 •手持式电子 •数码相机 •掌上电脑 •电源后备电池 •MP3播放器 |
