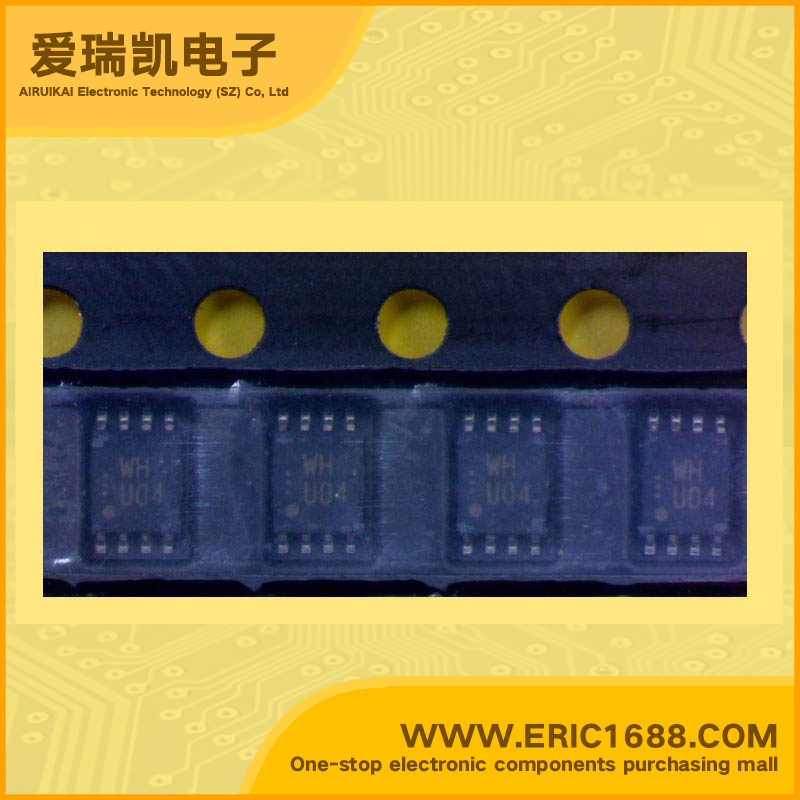

Integrated Circuit(IC) inverter TC7WHU04FK US8 marking WHU04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
3
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
2µA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.3V
高逻辑电平
Logic Level - High
1.7V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7ns @ 4.5V ~ 5.5V,50pF
Description & ApplicationsTriple Inverter(Un-Buffer) ;High speed: tpd = 3.5 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation: ICC = 2 μA (max) at Ta = 25°C • High noise immunity: VNIH = VNIL = 10% VCC (min) • 5.5-V Tolerant inputs. • Wide operating voltage range: VCC = 2to5.5 V • Balanced propagation delays :tpLH ≈ tpHL • Identical pin assignment and function with TC7WU04
描述与应用三重逆变器(无缓冲);高速:TPD =3.5纳秒(典型值)VCC= 5 V,CL=15PF •低功耗:ICC= 2μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL= 10%VCC(分钟) •5.5-V宽容的投入。 •宽工作电压范围:VCC=2to5.5 V •平衡传输时延:TPLH≈TPHL •相同的引脚分配和功能TC7WU04
