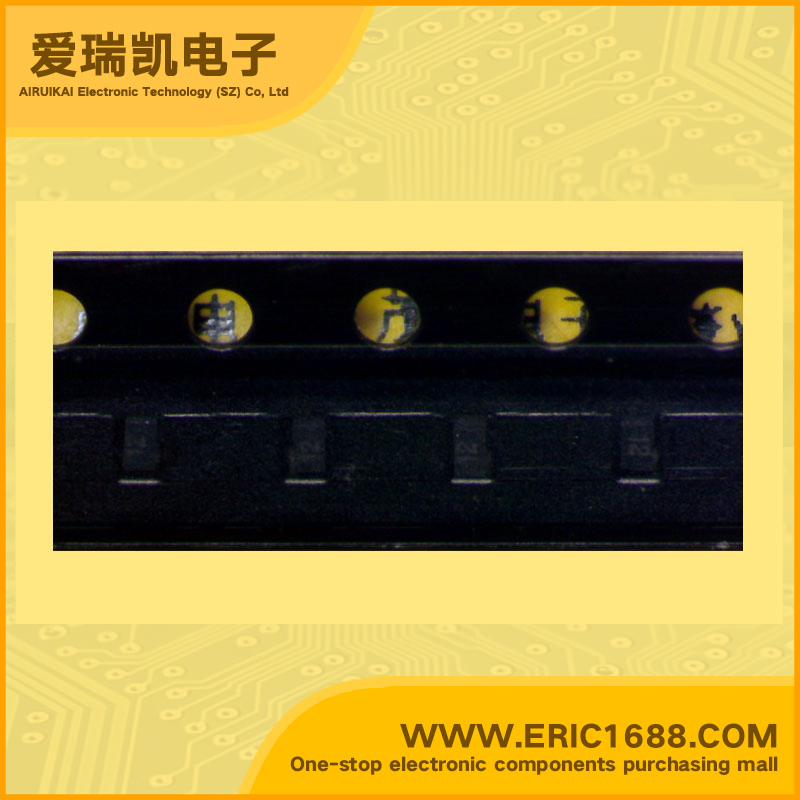

PKFC12C-LF TVS/ESD 12V 7A 0603/1608 marking 12
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 12V |
| 反向击穿电压VBR Breakdown Voltage | 13.3V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 250W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 7A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | PACKAGED FLIP CHIP ARRAY；FEATURES • PACKAGED FLIP CHIP ARRAY • ESD Protection > 25 kilovolts • Available in Multiple Voltage Types Ranging From 3.3V to 36V • 250 Watts Peak Pulse Power per Line (tp = 8/20µs) • Bidirectional Configuration & Monolithic Structure • Protects 1 Line • RoHS Compliant in Lead-Free Versions |
| 描述与应用 | 包装倒装芯片阵列;特性 •包装倒装芯片阵列 •ESD保护>25千伏 •提供从3.3V至36V多电压类型 •250瓦峰值脉冲功率线（TP =8/20μS） •双向配置及整体结构 •保护1线 •符合限制有害物质指令（RoHS）规范要求无铅版本 |
