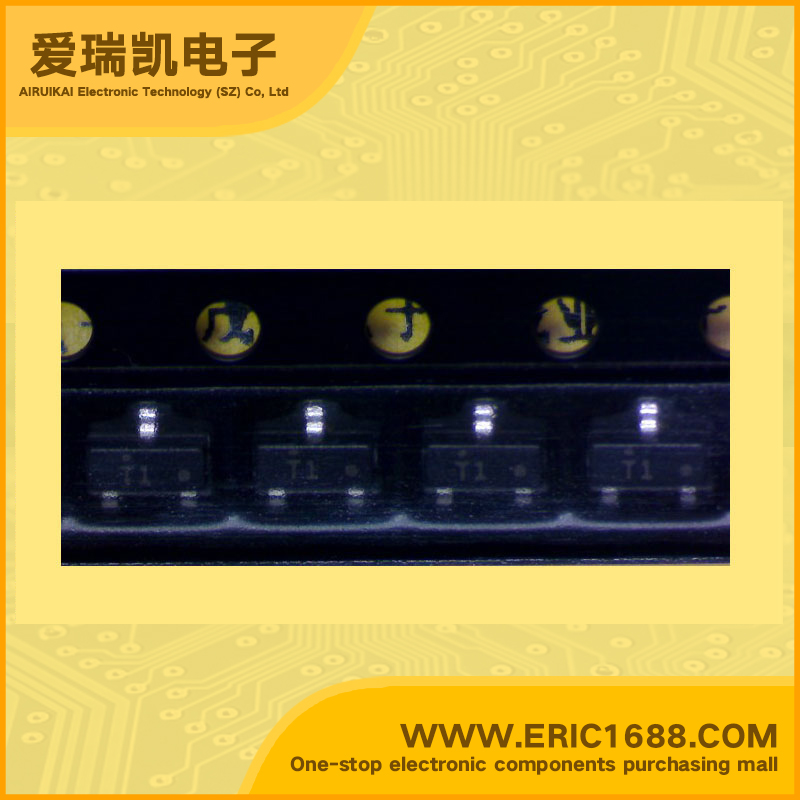

BCX17 PNP transistors（BJT） -50V -500mA/-0.5A 100~600 -620mV/-0.62V SOT-23/SC-59 marking T1 amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流IC Collector Current(IC) | −500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) | |
| 直流电流增益hFE DC Current Gain(hFE) | 100~600 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −620mV/-0.62V |
| 耗散功率Pc PoWer Dissipation | 300mW/0.3W |
| Description & Applications | PNP General Purpose Amplifier • This device is esigned for general purpose amplifier and switching application at current 0.5A. • Sourced from process 78. |
| 描述与应用 | PNP通用放大器 此设备为通用放大器和开关esigned 应用在电流0.5A。 •来源于过程78 |
