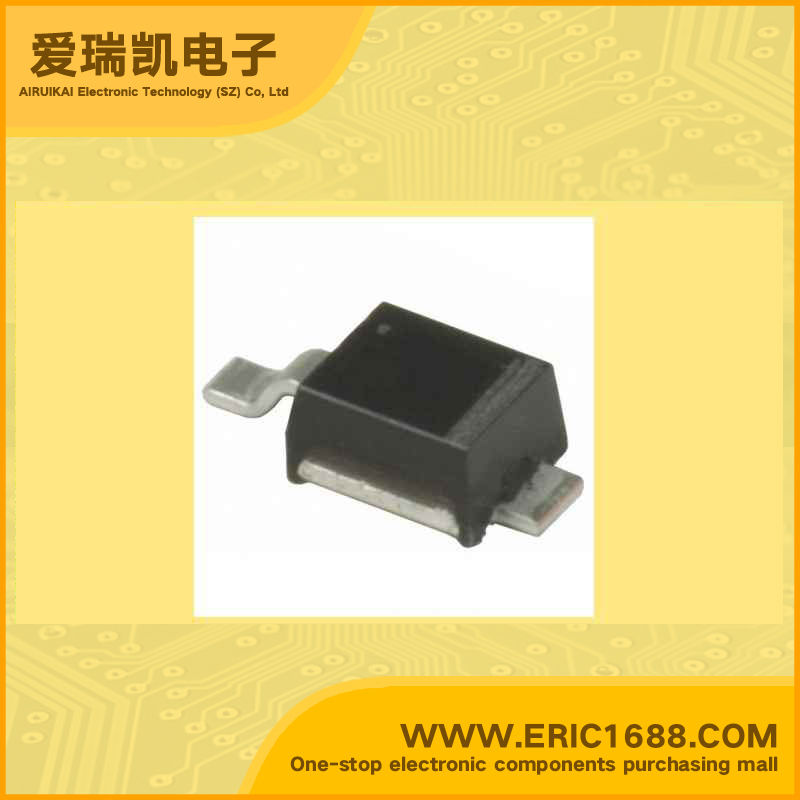

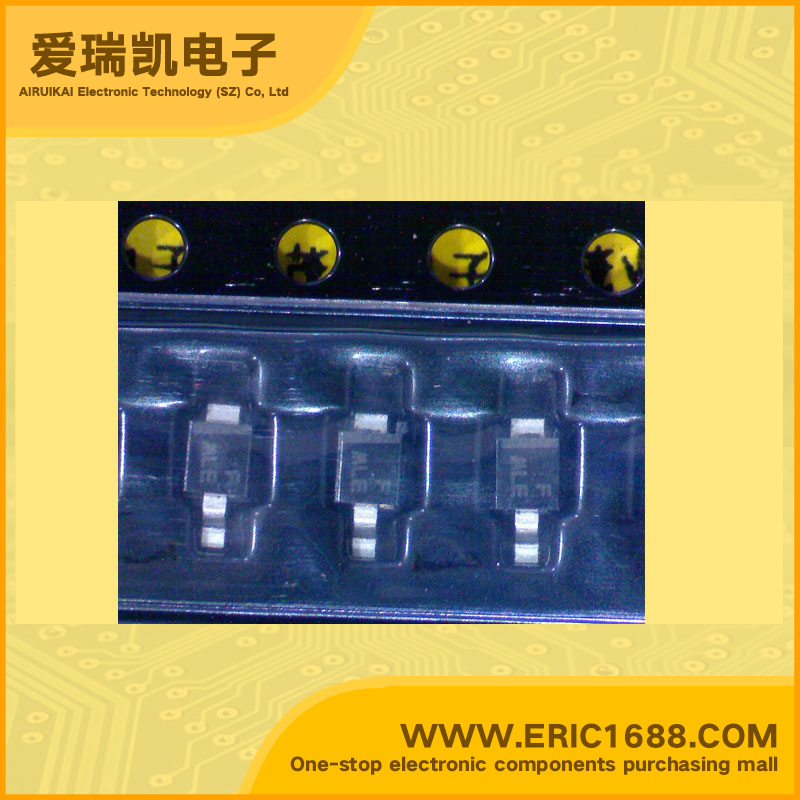

1PMT12AT1 TVS/ESD 12V 10.1A 1.5W 457-04 marking MLE
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 12V |
| 反向击穿电压VBR Breakdown Voltage | 14V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 200W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 10.1A |
| 额定耗散功率Pd Power dissipation | 1.5W |
| Description & Applications | Zener Transient Voltage Suppressor POWERMITE® Package；Specification Features • Stand−off Voltage: 5.0 V − 58 V • Peak Power − 200 W @ 1 ms (1PMT5.0A − 1PMT36A) − 175 W @ 1 ms (1PMT40A − 1PMT58A) • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage • Response Time is Typically < 1 ns • ESD Rating of Class 3 (> 16 kV) per Human Body Model • Low Profile − Maximum Height of 1.1 mm • Integral Heatsink/Locking Tabs • Full Metallic Bottom Eliminates Flux Entrapment • Small Footprint − Footprint Area of 8.45 mm2 • POWERMITE is JEDEC Registered as DO−216AA • Lead Orientation in Tape: Cathode (Short) Lead to Sprocket Holes • Cathode Indicated by Polarity Band • Pb−Free Packages are Available |
| 描述与应用 | 齐纳瞬态 电压抑制器 POWERMITE®封装;规格特性 •关断电压:5.0 V−58 V •峰值功率−200 W @1 ms(1PMT5.0A − 1PMT36A) −175 W @1 ms(1PMT40A − 1PMT58A) •最大峰值钳位电压@ 峰值脉冲电流 •低泄漏 •响应时间通常是< 1 ns •防静电等级3级(> 16千伏)/人体模型 •低轮廓−最大高度为1.1毫米 •整体散热片/锁定标签 •全金属底消除通量截留 •小引脚−占用面积8.45平方毫米 •POWERMITE是注册为−JEDEC做216AA •领导取向在磁带:阴极(短)导致齿孔 •阴极表明极性带 •无铅包装 |
