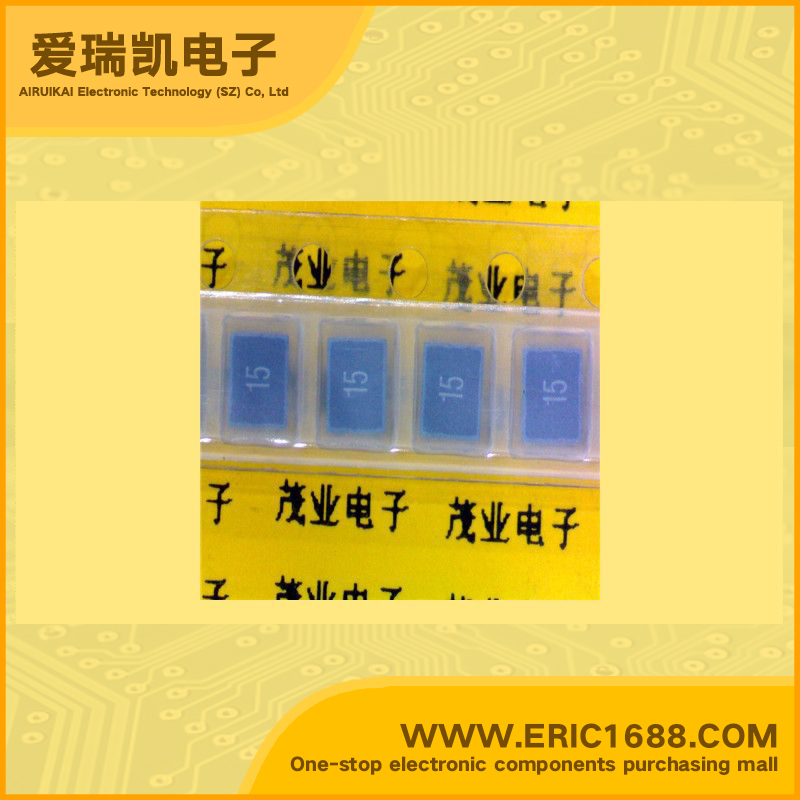

low power inductor NL322522T-015J 15nH 3225-15N 15
| 电感值 Inductance | 15nH |
| 误差 Tolerance | ±5% |
| 额定电流 Current Rating | 450mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 19 @ 100MHz |
| 自振谐频率SRF Frequency - Self Resonant | 2.1GHz |
| DC电阻DCR DC Resistance (DCR) | 0.16Ω/Ohm |
| 屏蔽 Shielding | 屏蔽 Shielded |
| Description & Applications | NL Series NL3225 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent. |
| 描述与应用 | NL系列NL3225类型 特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。 |
