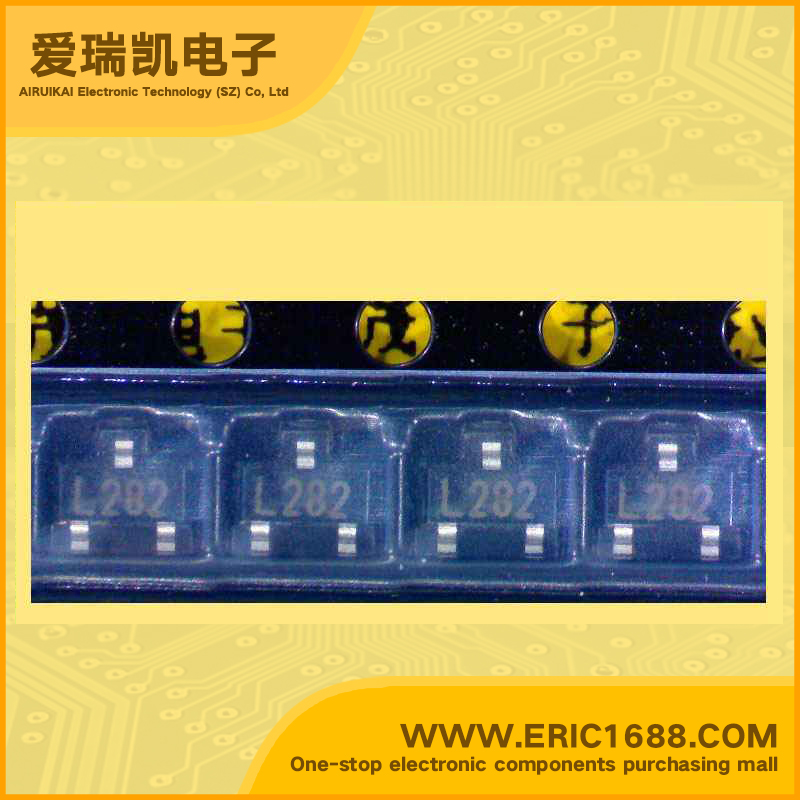

TS3431BILT Voltage Reference Power Management IC 1.24 V ~ 24 V SOT-23 marking L2 Programmable BIPOLAR ANALOG INTEGRATED CIRCUIT
| 参考类型 Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo Voltage - Output | 1.24 V ~ 24 V |
| 误差 Tolerance | ±0.5% |
| 温度系数 Temperature Coefficient | 100ppm/°C |
| 输入电压 Voltage - Input | 1.24 V ~ 24 V |
| 阴极电流 Current - Cathode | 400µA |
| 输出电流IOUT Current - Output | 100mA/0.1A |
| Description & Applications | FEATURES • 1.24V Programmable Shunt Voltage Reference • Adjustable output voltage: 1.24 to 24V • Several precision @ 25°C ±2%, ±1%, ±0.5% and ±0.25% • Sink current capability: 0.4 to 100mA • Industrial temperature range: -40 to +125°C • Performances compatible with industry standard TL431 Applications • Computers • Instrumentation • Battery chargers • Switch mode power supply • Battery operated equipments |
| 描述与应用 | 特点 •1.24V可编程并联型电压基准 •可调输出电压：1.24〜24V •几个精确@ 25°C±2％，±1％，±0.5％，±0.25％ •灌电流能力：0.4至100mA •工业温度范围：-40至+125°C •兼容行业标准TL431性能 应用 •电脑 •仪表 •电池充电器 •开关模式电源 •电池供电设备 |
