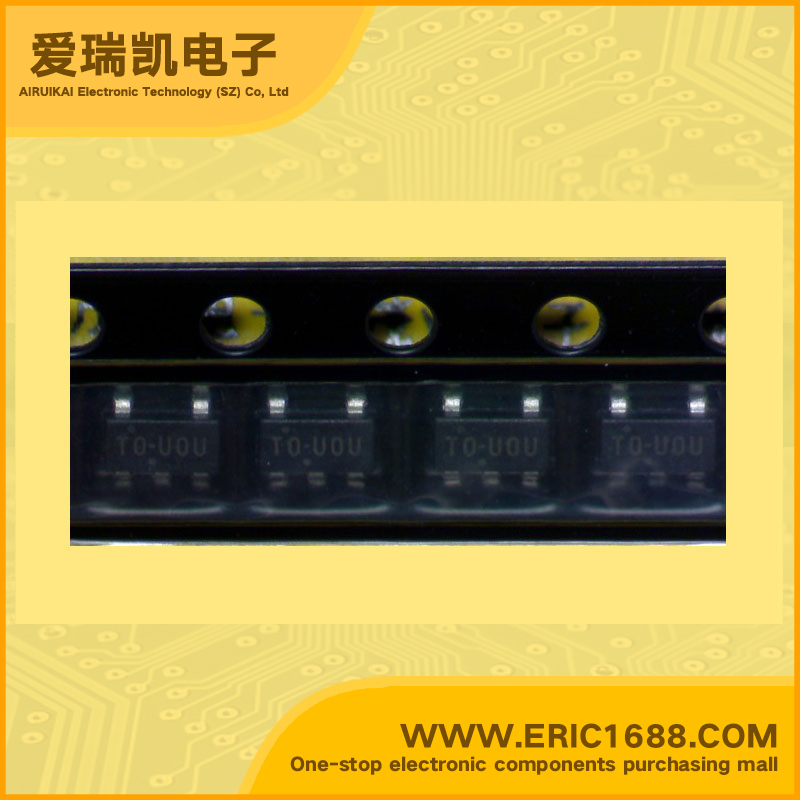

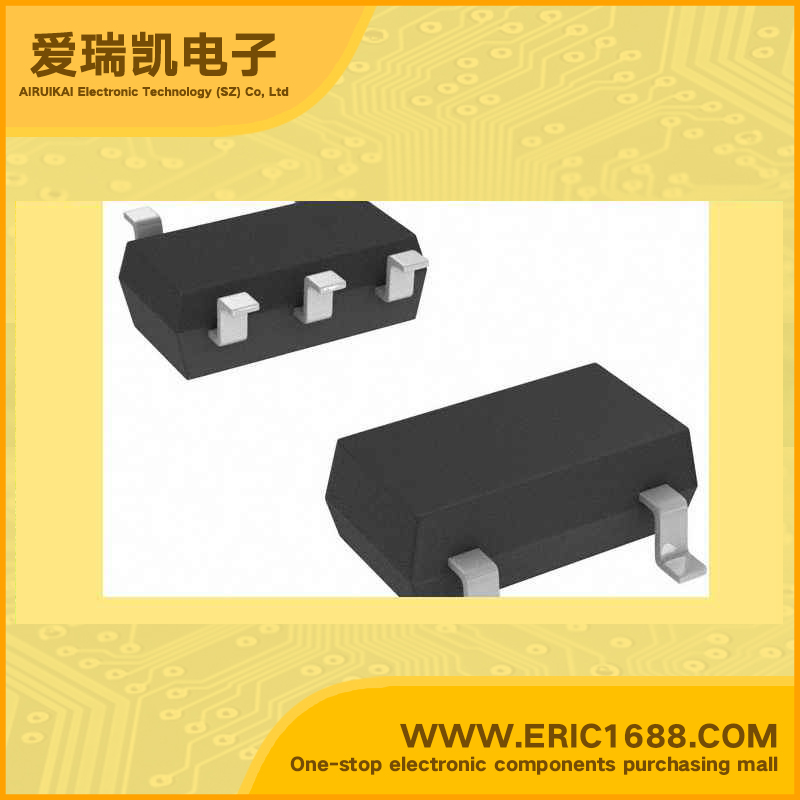

RT9702PB Power Distribution Switch SOT-153/SOT23-5 marking TO High-Side Power Switches

Hot selling goods

Product description
类型
Type
高端开关 high-side
输出数
Number of Outputs
2
Rds (On)80mΩ@5V
内部开关
Internal Switch(s)
有 YES
电流限制
Current Limit
0.5A~1.1A
电压 - 输入
Voltage - Input
2~5.5V
Description & Applications•80mΩ, 500mA/1.1A High-Side Power Switches •Compliant to USB Specifications •Built-In (Typically 80mΩ) N-Channel MOSFET •Output Can Be Forced Higher Than Input (Off-State) •Low Supply Current: 25μA Typical at Switch On State 0.1μA Typical at Switch Off State •Guaranteed 500mA/RT9702 and 1.1A/RT9702A Continuous Load Current •Wide Input Voltage Ranges: 2V to 5.5V •Open-Drain Fault Flag Output •Hot Plug-In Application (Soft-Start) •1.7V Typical Under-Voltage Lockout (UVLO) •Current Limiting Protection •Thermal Shutdown Protection •Reverse Current Flow Blocking (no “body diode) •Smallest SOT-25 Package Minimizes Board Space
描述与应用•80MΩ,500mA/1.1A高侧电源开关 •符合USB规格 •内置(通常80MΩ)N沟道MOSFET •可以强制输出高于输入 (关闭状态) •低电源电流: 在开关导通状态25μA典型 在关机状态下的典型0.1μA •保证500mA/RT97021.1A/RT9702A 连续负载电流 •宽输入电压范围:2V到5.5V •漏极开路的故障标志输出 •热插拔应用(软启动) •1.7V典型的欠压锁定(UVLO) •电流限制保护 •热关断保护 •反向电流阻断(没有“身体 二极管) •最小的SOT-25封装减少电路板 空间
