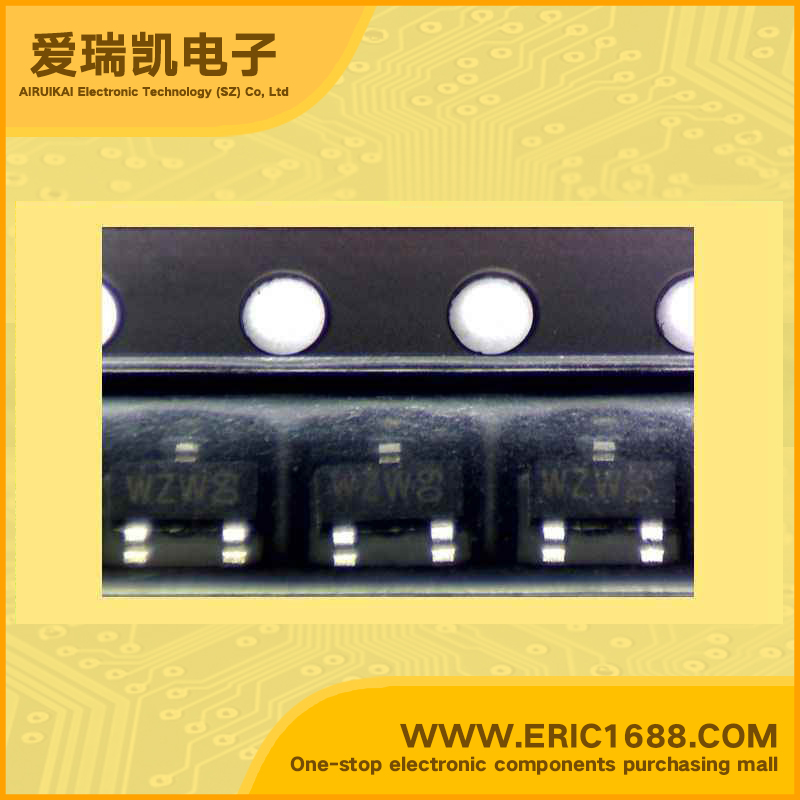

BC807-25/DG/B2 PNP transistors（BJT） Vcbo=-50V Vco=-45v Ic= -500mA/-0.5A ft=80MHz hfe=160~400 Vce=-700mV/-0.7V SOT-23/SC-59 marking WZW switch and amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
−50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
−45V |
| 集电极连续输出电流IC Collector Current(IC) |
−500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
160~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
−700mV/-0.7V |
| 耗散功率Pc PoWer Dissipation |
250mW/0.25W |
| Description & Applications | General Purpose Transistors Features High current Low voltage Applications General-purpose switching and amplification |
| 描述与应用 | 通用晶体管PNP硅 特点 高电流 低电压 应用 通用的开关和放大 |
