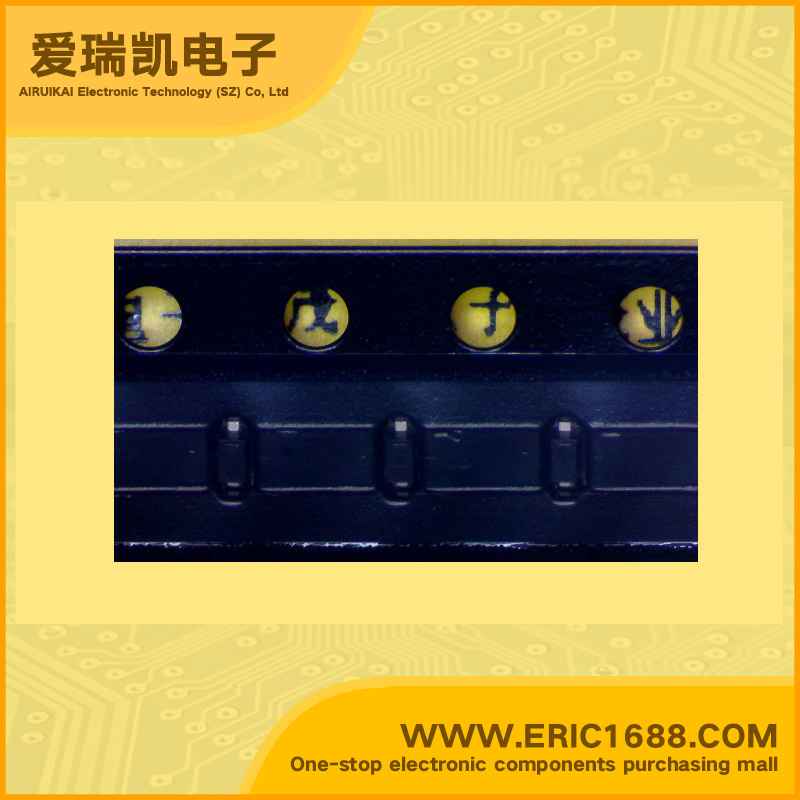

SMV1763-079 Variable Capacitance Diodes (Varicaps, Varactors) 8V 6.7pF 2.5 SOD-523/SC-79/0603 marking UHF SHF tuning
| 反向电压VR Reverse Voltage | 8V |
| 电容值C Diode capacitance | 6.7pF |
| @反向电压VR @Reverse Voltage | 0.5V |
| 电容值C Diode capacitance | 2.6pF |
| @反向电压VR @Reverse Voltage | 2.5V |
| 电容比 Capacitance ratio | 2.5 |
| Description & Applications | Hyperabrupt Junction Tuning Varactor Description The SMV1763-079 is a silicon hyperabrupt junction varactor diode specifically designed for 3 V platforms. The specified high capacitance ratio and low RS of this varactor make it attractive for low phase noise VCOs in wireless systems up to and beyond 2.5 GHz. Applications include low noise and wideband UHF and VHF VCO for GSM, PCS, CDMA and analog phones Designed for high-volume, low-cost battery applications Low series resistance High capacitance ratio at low reverse voltage Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C per JEDEC J-STD-020 Ultrasmall SC-79 package Available in tape and reel packaging |
| 描述与应用 | 超突变结调谐变容 描述 SMV1763-079是专为3 V平台硅超突变结变容二极管。 指定的高电容率和低RS变容使它有吸引力的无线系统中的低相位噪声VCO和超越 2.5 GHz的。应用包括低噪声和宽带UHF和 VHF VCO和GSM，PCS，CDMA和模拟电话 为高容量，低成本电池应用而设计 低串联电阻 在低反向电压下有着高电容率 超小型SC-79封装 可卷带式包装 |
