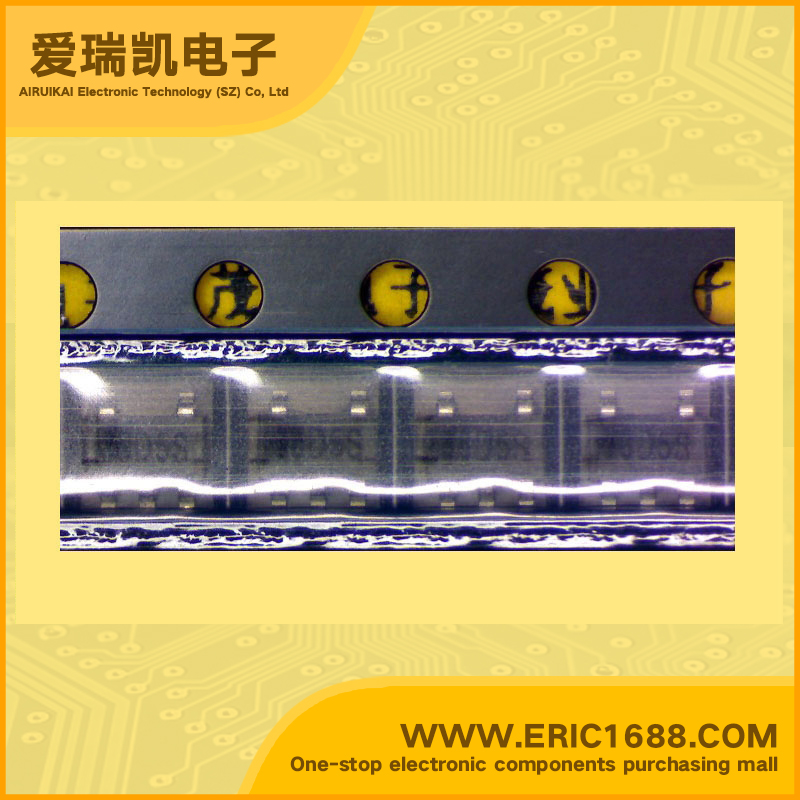

CM2838GDIM25 LDO Voltage Regulator 1.8V 1.3V With Enable Pin SOT-153/SOT23-5 marking 38D Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 1.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 250mW/0.25W |
| Description & Applications | 300mA LOW ESR CMOS LDO WITH ENABLE；•Very Low Dropout Voltage •Low Current Consumption: Typ. 30µA, Max. 35µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 300mA Output •Input Range of 2.6V to 7.0V •Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient |
| 描述与应用 | 300mA的低ESR的CMOS LDO带有使能端;•非常低压差电压 •低电流消耗：典型。 30μA，最大。 35μA •高精度输出电压：+/ - 1.5％ •保证300mA输出 •输入电压范围为2.6V至7.0V •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数 |
