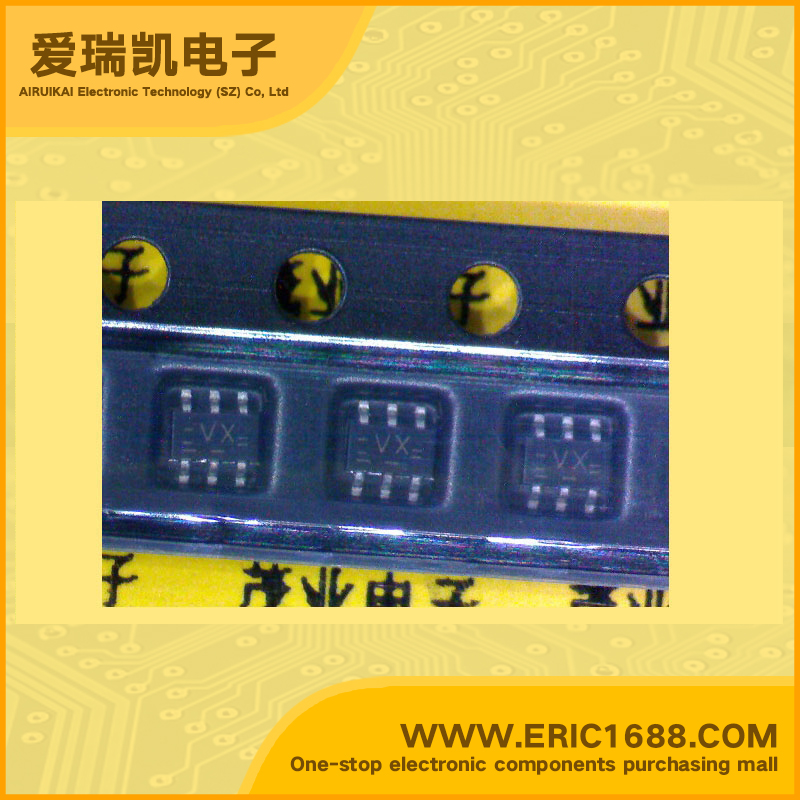

Integrated Circuit（IC） inverter 74LVC1GX04GW SOT-363/TSSOP6/SC88 marking VX
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.8V |
| 高逻辑电平 Logic Level - High | 1.7V~3.4V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | X-tal driver；FEATURES Wide supply voltage range from 1.65 V to 5.5 V High noise immunity ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V ±24 mA output drive (VCC = 3.0 V) CMOS low power consumption Latch-up performance exceeds 250 mA Input accepts voltages up to 5 V Multiple package options Specified from−40 °C to +85 °C and −40 °C to +125 °C |
| 描述与应用 | X-TAL驱动；特性 从1.65 V至5.5 V的宽电源电压范围 高抗干扰 ESD保护： HBM JESD22-A114F超过2000 V MM JESD22-A115-A超过200 V ±24 mA输出驱动器（VCC=3.0 V） CMOS低功耗 闭锁性能超过250 mA 输入接受高达5 V的电压 多种封装选项 指定-40°C至+85°C和-40°C至+125°C |
