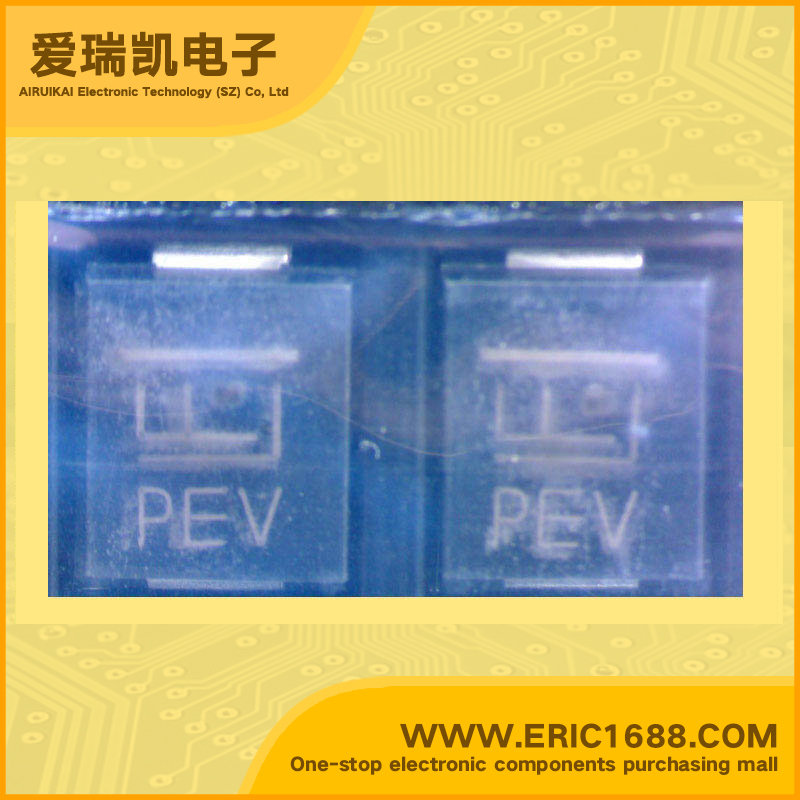

SMDJ20A TVS/ESD 20V 92.6A 6.5W DO-214AB/SMC-20V marking PEV

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
20V
反向击穿电压VBR
Breakdown Voltage
23.35V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
3000W
峰值脉冲电流IPPm
Peak Forward Surge Current
92.6A
额定耗散功率Pd
Power dissipation
6.5W
Description & ApplicationsFeatures • Transient Voltage Suppression Diodes • Halogen-Free • RoHS compliant • For surface mounted applications in order to optimize board space • Low profile package • Built-in strain relief • Typical maximum temperature coefficient ΔVBR= 0.1% x VBR@25°C x ΔT • Glass passivated chip junction • 3000W peak pulse power capability at 10×1000μs waveform, repetition rate (duty cycles):0.01% • Fast response time: typically less than 1.0ps from 0V to BV min • Excellent clamping capability • Low incremental surge resistance • Typical IR less than 2µA above 12V • High Temperature soldering guaranteed: 260°C/40 seconds at terminals • Plastic package has Underwriters Laboratory Flammability 94V-O • Matte Tin Lead–free Plated
描述与应用特点 •瞬态电压抑制二极管 •无卤 •符合RoHS标准 •对于表面安装的应用程序,以优化电路板空间 •薄型包装 •内置应变救灾 •典型的最大温度系数ΔVBR的=0.1%所述VBR@ 25°C XΔT •玻璃钝化结 •3000W峰值脉冲功率能力为10×1000μs波形,重复率(占空比):0.01% •快速响应时间:通常小于1.0PS从0V到BV分钟 •出色的钳位能力 •低增量浪涌电阻 •典型的IR小于2μA12V以上 •高温焊接保证:260°C/40秒钟码头 •塑料包装有保险商实验室可燃性94V-O •雾锡镀无铅
